Jiadeying Electronic Technology Co., Ltd.
China Manufacturer with main products: satellite universal receiver LNB, KU band universal LNB, Ku band lnb, single lnb |

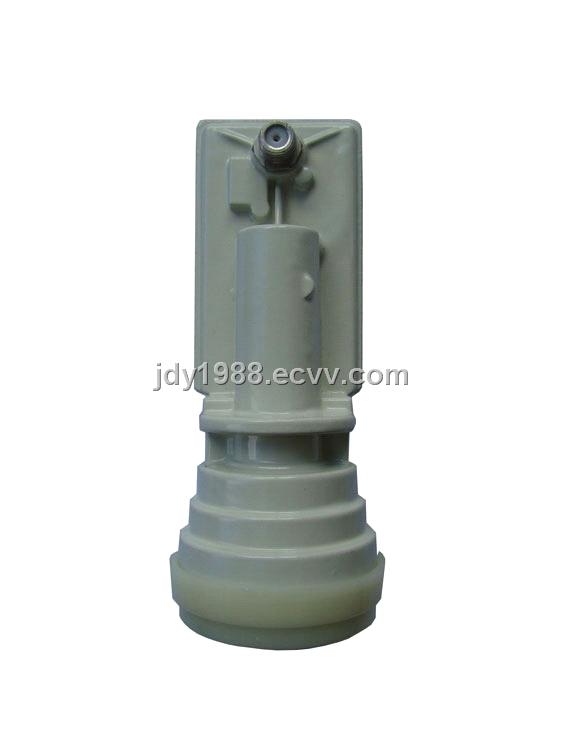

single LNB
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Southeast Asia, Africa, Mid East |
|---|
Specifications
specifications
receiving all horizonal and vertical KU-Band satellite signal
high reliability ,low phase noise ,supper-low noise,small size
high reliability ,low phase noise ,supper-low noise,small size
| Input Frequency | low band:10.7~11.7GHz high band:11.7~12.75GHz |
| Output Frequency | low band:950~1950MHz high band:1100~2150MHz |
| Output VSWR | 2.2:1@25oC |
| Output Impedance | 75Ω |
| Output Connector | Type F Female |
| L.O.Frequency | low band:9.75GHz high band:10.6GHz |
| L.O.Frenquency Stability | low band: 1MHzMax@25oC high band:3MHzMax@25oC |
| Phase Noise | -70dBc/Hz@1KHz offset |
| -90dBc/Hz@10KHz offset | |
| -110dBc/Hz@100KHz offset | |
| Conversion Gain | 55dB (Typ.)@25oC |
| Gain Flatness | ±3[±0.5dB/27MHz](Typ.) |
| P 1dB Gain Compression | 3 dBm (Typ.) |
| Noise Figure | 0.5 dB (Typ.) |
| F/D Ratio | 0.6 |
| Image Rejection | 45dB (Typ.) |
| Power Supply | DC:12.0V--18.0V |
| Band Select Control : | Low Band: 0 Hz |
| High Band: 22 KHz | |
| Polarity Select Control : | V: 12~14V DC |
| H: 15.5~20V DC | |
| Work Current : | 90 mA |
