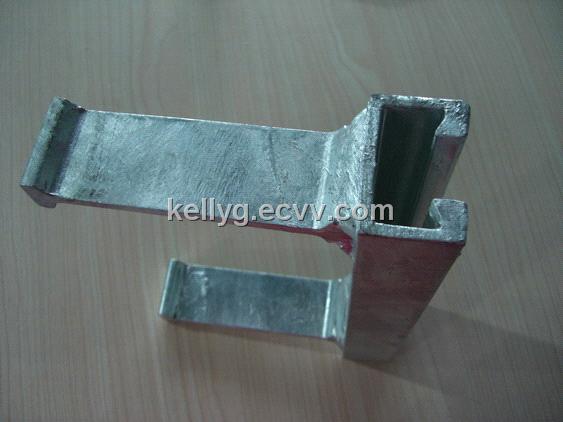

hot rolled cast in channel

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Forgings Roller

Price:

Min. Order:
Cast Iron Repair Machine

Price:

Min. Order:1 Set
Factory Directly Sell Phoenix Epoxy Resin Casti...

Price:4.79-5.19 USD/Kilogram

Min. Order:100 Kilograms
Supply Alloy Casting Roller

Price:

Min. Order:10 Sets

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China
Packaging Details:	in cartons/ pallets according to the length of products

Specifications

Introduction

GEODA Cast in channels are designed to provide secure fixings for items attach to the concrete, it mostly are in rectangular shape and bonded to the concrete by anchors. Each channel is complemented by matching T-head bolts to support static or dynamic loads. They are especially designed for highly reinforced and slender concrete parts. Cast-in Channels range from simple self anchoring slots for accepting restraint fixings to large capacity channels with integral anchors, they provide the necessary adjustment required when fixing to concrete and can eliminate site drilling. Nail holes aid the fixing of channels to timber formwork and infill prevents the ingress of concrete during casting

Use

The channels are fixed to the formwork prior to the casting of the concrete. When the formwork is struck, each channel provides a slot, into which GEODA T-head bolts can be fixed in any position along the length

Advantages

1. Anchoring without damaging the concrete structure and reinforcement

2. Good integration into heavily reinforced components

3. Suitable for pre-stressed and post-tensioned structures

4. Increased load capacity near reinforcement

5. High fatigue resistance as well as loads resulting from seismic tremors and explosions

6. Time efficient on-site installation

7. Small edge distances

8.Reinforcement can be taken into account when planning

Range of types/sizes

A wide choice of channel series and sizes are available in both hot rolled and cold formed material to suit a variety of load conditions, in addition, we can also provide some special designed cast in channels for special purpose use according to the practical situation
