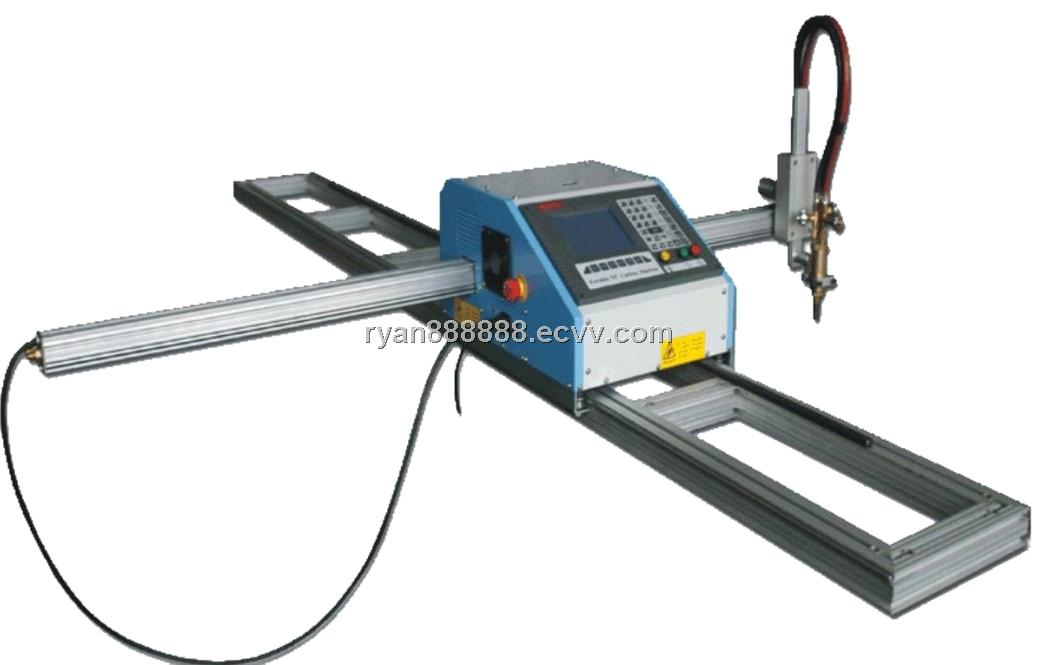

CNC Steel Cutting machine LHBX-3
Application:
It can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.
Features:
1. Telescopic arm type. The unique design, compact structure makes it take up small place, stable operation, and high cutting precision. Chassis and cantilever are aluminum materials, smart, light weight, mobile convenience.
2. The model can be equipped with flame or plasma cutting (it depend on the customer) .It is a high efficiency, energy conservation cutting equipment; also it is profiling cutting machine and the upgrades of general portable CNC cutting machine.
3. with automatic ignition and automatic increase. Move as a whole, used as "small car" can be placed directly on the cutting plate, easy to operate and flexible;
4. The control system is the latest Start-2012AH, and 7inch color LCD screen.
5. The guide rail can be thickening according to the customer.
6.The flame cutting equipped with Capacitance automatic increase equipment, plasma cutting equipped with arc voltage automatic increase equipments , suitable for various thickness of carbon steel, stainless steel and nonferrous metal plate cutting, especially for the uneven plate material special cutting.
Parameters:
|
Model
|
LHBX-3
|
|
Control system
|
Start-2012AH
|
|
Drive motor
|
Stepper
|
|
Plasma Torch height controller
|
Automatic
|
|
Flame torch height controller
|
Electric
|
|
Effective Cutting Width (X axis)
|
1.2m,1.5m
|
|
Effective Cutting Length (Y axis)
|
2m,2.5m,3m(Can be lengthened)
|
|
Flame Cutting Thickness
|
5-150mm(For mild steel)
|
|
Plasma Cutting Thickness
|
According to the plasma power
|
|
Flame cutting material
|
Mild steel, low carbon steel
|
|
Plasma cutting material
|
Stainless steel,copper,aluminum and so on
|
|
Drive Mode
|
Single-side
|
|
Cutting Speed
|
0-3500mm/min
|
|
Moving Precision
|
0.01mm/step
|
|
Power Source
|
220V 50Hz 1000W
|
|
Cutting Gas
|
Acetylene, Propane, Oxygen
|
|
Plasma Gas
|
Pressed air, Oxygen, N2
|
|
Power supply
|
AC 220V/380V 50/60Hz 1000W
|
Performance Description:
1.32M super storage capacity of the user's program, processing up to 10000.
2. Conversion can be freely done in English and Chinese, can execute, display and save the Chinese file name.
3. Rich software features, practical flame/plasma cutting process, especially the handling of small line program, can be widely used in advertising materials, iron and so on.
4.4-axis functionality can be extended.
5. Dynamic graphics with the latest Star CNC micro-step SH-2012AH, 7inch color LCD screen.
6. U-disk read procedure and timely software upgrades.
7. With 24 images itself.
8. For stainless steel, carbon steel, alloy steel, aluminum, copper and other nonferrous matal.
