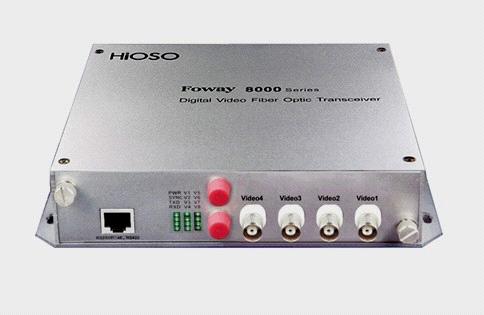

Node type Cascade Optical Video Transceivers

Supply Ability:	30,000 Pair per Month
Shipping:	within one week
Payment Terms:	T/T, Escrow

Inquiry Now

Related products from verified members

Temperature & Humidity Transmitter

Price:200.00-6000.00 USD/Set

Min. Order:1 Set
TDM400P 4 fxo card

Price:99.00-109.00 USD/Piece

Min. Order:1 Piece
Optic Fiber Jumper

Price:0.50-100.00 USD/Piece

Min. Order:1 Piece
Optical Fiber

Price:50.00-8,000.00 USD/Set

Min. Order:100 Sets

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Specifications

Overview

HiOSO FOWAY8000N series cascaded (8-node) digital video optical transceiver adopts uncompressed digital video transmission, which combines TDM (Time Division Multiplexing) technique and ADM (Add/Drop Multiplexer) technique. 8～10 nodes cascaded optical transceiver adopts 1.25G optical transmission platform, simultaneously transmitting 8～10 channels video signal in one fiber. It supports at least 8～10 nodes and 1～4 channels video. Local equipment can real-time transmit 8～10 channels video.

Cascaded optical transceiver adopts modularization design; and supports function extending. The remote transceiver can supply 2 channels RS-485/422 shared data and 2 channels independent channel point-to-point data/audio signal. Each remote transceiver or local transceiver can transmit multi-channel audio, data and contact closure signal through adding audio/data extending board.

Cascaded optical transceiver supports optical chain protection (optional), which can automatically isolate fault node, ensuring other node transceivers work normally. It can also be configured with network management plug, to implement network management function of remote and local transceivers.

It is now widely used in security monitoring and control system, highway, Traffic Control Photographic System, automation and intelligent residence.

Character

Industrial-level design with SMT techniques

Full digital transmission in fiber, multi-service flexible configuration on the same platform

Supply desktop and integrated card type

Based on large scale integrated circuit

Transmission in single-fiber, dual-fiber is optional

Fully compatible with PAL/NTSC/SECAM

Support asynchronous data (positive/reverse), transmission rate is up to 115.200Kbps

Support RS232, RS422, RS485 or Manchester code

Support SNMP

Carrier class centralized network management

Technical specification

Fiber port

Port FC/SC/ST optional

Wavelength Single-mode1310nm/1550nm

Multi-mode 850nm/1310nm

Transmission power -8∽-4dBm

Receiving sensitivity <-23dBm(bit error rate<10^-11)

Transmission distance Single-mode 20/40/60/80/100Km

Multi-mode 220m/550m

Video

Signal type PAL/NTSC/SECAM

Nominal input/output level 1Vp-p

Nominal input/output impedance 75Ω

Bandwidth per channel 6.5 MHz

Sample frequency 13.5MHz

Quantization 8bit

Connector BNC interface

Audio

Bandwidth per channel 20Hz~20K Hz

Sample frequency 48K Hz

Quantization 24bit

THD (Total Harmonic Distortion) 0.1% (typical value)

Audio connector RJ45 interface/ phoenix

Asynchronous data

Connector RS232/RS485/RS422/ Manchester code

Working mode Full/Half Duplex

Data rate 115.200Kbps

Bit error rate <1×10^-9

Data connector RJ45 interface/ phoenix

Ethernet

Standard IEEE802.3, IEEE802.3u

Working mode 10/100M adaptable, Full/Half Duplex

Connector RJ45 interface/ phoenix

Contact closure

Number of channels 1 channel

Working mode set open/shorted circuit alarm

Connector RJ45 interface/ phoenix

Operating environment

Power supply input AC220V/DC-48V; output DC5V

Power consumption < 5W

Operating temperature -40℃-75℃

Storage temperature -40℃-+85℃

Relative humidity 95%

Dimension

199mm×159mm×44mm

Order information

Type	Node/ Central	Function	Specification
FOWAY8008NR-A1RD1- S20F	Central	8V↓＋1A↑+1D↓	8-channel reverse video+1-channel audio+1-channel reverse data 20 kilometers FC
FOWAY8001NT-A1RD1- S20F	Node	1V↑＋1A↑+1D↓	1-channel video+1-channel audio+1-channel reverse 20 kilometers FC data
FOWAY8002NT-A1RD1- S20F	Node	2V↑＋1A↑+1D↓	2-channel video+1-channel audio+1-channel reverse data 20 kilometers FC
FOWAY8004NT-A1RD1- S20F	Node	4V↑＋1A↑+1D↓	4-channel video+1-channel audio+1-channel reverse data 20 kilometers FC
