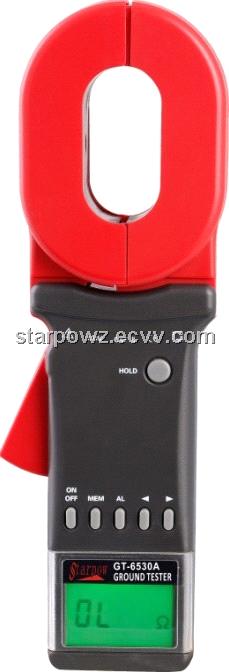

Ground resistance test GT-6530A

FOB Price:	285.00 - 290.00 USD/Piece
Supply Ability:	2,000 Piece/Pieces per Month
Shipping:	FOB
Payment Terms:	T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

PTI injector test stand

Price:3000.00-5000.00 USD/Set

Min. Order:1 Set
KL-169-E ORP/Redox Tester KL-169-E ORP/Redox Te...

Price:10.00 USD/Set

Min. Order:1 Set
Hios Digital Torque Meters HP-100 Electric Digi...

Price:100.00-200.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Suitcase

Specifications

Function:Ground resistance test, Loop resistance test
Power Supply:6VDC 4 PCS of AA Alkaline batteries
Resistance Range:0.01-1200Ω
Resistance Resolution:0.001Ω
Highest Resistance Accuracy:±1%±0.01Ω
Data memory:99 Sets
Alarm Threshold Setting Range:Resistance→1-199Ω
Alarm Sound and Light: “Beep-beep-beep” alarm tone, Alarm Symbol Flashing, Press

AL key to turn on, turn off Alarm or set Alarm Threshold.
Interference Signal Recognition: “Beep-beep-beep” tone, NOISE symbol blinking
Working Temperature and Humidity: -20℃-55℃; 20％RH-90％RH
LCD Screen: 4 Digits LCD display, Screen L×W: 47mm×28.5mm
Clamp Size: 65mm×32mm
Clamp Opening Extent: 32mm
Tester Weight: 1160g (With batteries)
Clamp Dimension: L×W×T: 285mm×85mm×56mm
Protection Level: Dual Insulation
Structural Feature: Clamp CT
Shifting: Automatic shifting
External magnetic field: ＜40A/m
External electrical field: ＜1V/m
Single measurement time: 0.5 second
Resistance measurement frequency: ＞1KHz
Measured current frequency: 50/60Hz Automatic measurement
Low Battery Indication: Low battery symbol displays when battery is lower then 5.3V
Memory Full Indication: MEM symbol blinks when all 99 sets memory is full
Over Range Indication: Out of range indication “OLΩ”, “L0.01” or “OL A”
Auto Power-off 5 minutes after Boot up
Power Consumption: Max 50mA either in booting up or normally working, Continuously working for 30 hours
RS232 Interface (Optional): The data stored in the meter are uploaded to the computer through RS232 interface and data wire, Then generate report files
Safety Provisions: IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V)
