Welding Pipe Line

Shipping:	Shanghai
Payment Terms:	L/C, T/T, D/A

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Specifications

Welding Pipe Line

Technical Parameter:
Types: Six-High Reverse Rolling Mill,

Models: MS-6C-400A MS-6C-450A MSB-6C-650A MSB-6C-650E MSB-6C8 00A MSB-6C-900A MSB-6C-1450A MSD-6C-1780A
Strip Width: 400-1580 mm
Thickness of raw material: 1-4 mm
Thickness of end product: 0.15-2.5 mm
Capacity: Max 250,000 mt/a (Reverse),

Project case:

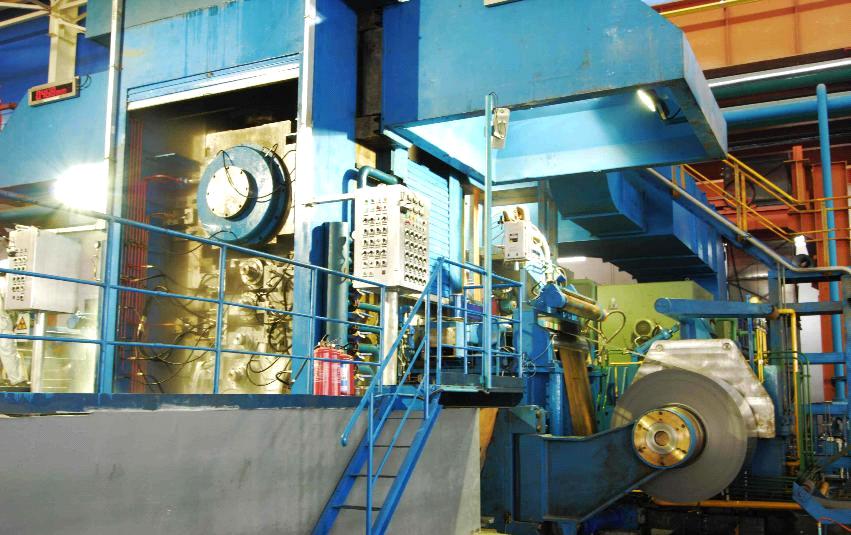

MSB-6C-1450B Six-High Reverse Rolling Mill
Technical parameters:
Strip thickness: 1.5mm～3.5mm
Final strip width: 0.2mm～1.5mm
Roller dimention: Work rollΦ420/380×1450mm
Intermediate roll Φ480/430×1400mm
Backup rollΦ1350/1280×1350mm
Max. Rolling speed : 1200m/min
Max. Rolling force : 20000KN
Max. Coiling tension : 140KN
Capacity: 200000t/a
Quality&Specification: SPHC, SPHD, SPHE, 10#, 20#, 08, 08AL etc
Product: Carbon Steel, Stainless Steel, Aluminium, Titanium, etc
End Product Thickness: 0.15-2.5mm; Width: 400-1800mm
Capacity: Max 250,000mt/a

Cold Rolling & Surface Treatment: Steel Strip Reverse Cold Rolling Mill; Steel Strip Tandem Mill; Aluminium Strip Rolling Mill; Push & Pull Steel Strip Pickling Line; Continuous Steel Strip Pickling Line; Acid Regeneration Station; Hot-dip Gavalnizing Line; Hot-dip Galvalume Line; Color Coating Line; Tin-Plate Production Line; etc.
