Shenzhen HDCVT Technology Co., Ltd.
China Manufacturer with main products: HDMI Converter, Game Converter, Audio Converter, Video Converter, HDMI Switch, HDMI Splitter, HDMI Extender, Audio Decoder |

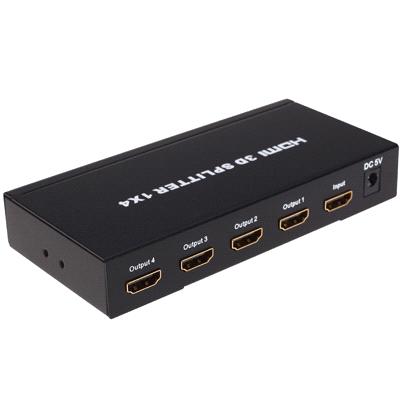

hdmi splitter 1 in 4 out 3D
| FOB Price: | 16.00 - 24.00 USD/Piece |
|---|---|
| Supply Ability: | 10,000 Piece/Pieces per Month |
| Shipping: | 2-3 working days |
| Payment Terms: | T/T, Paypal, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Ⅰ. Introduction
1×4 HDMI splitter distributes 1 HDMI source to 4 HDMI displays simultaneously. It offers HD video solution for super market; shopping Mall; HDTV, STB, DVD and projector factory; data control center; information distribution; conference room presentation; education and training, corporation show room, luxurious house, etc.
Ⅱ Specifications:
|
Input Video Signal
|
0.5 -1.0 volts p-p
|
|
Input DDC Signal
|
5 volts p-p (TTL)
|
|
Max Single Link Range
|
1920X1200, 1080P
|
|
HDMI Resolutions
|
480i/576i/480p/576p/720p/1080i/1080P
|
|
DVI Resolutions
|
480p/576i/576p/720p/1080i/1080p
|
|
HDMI Version
|
HDMI 1.3
|
|
Bandwidth
|
Up to 225MHz
|
|
EDID Duration
|
6 seconds
|
|
Power supply
|
DC 5V@2A
|
Ⅲ. Connection and Operation:
ⅰ). Connect the HDMI input source and output devices into the HDMI Splitter.
*please refer to the Connection Image.
ⅱ). Connect the DC 5V power supply into the splitter. Please make sure no other voltage power supply should be connected. Power supply with higher voltage may damage the splitter.
ⅲ). Turn on the power switch.
ⅳ). When all input and outputs are connected and turned on, the corresponding LED will light.
Attention: Insert and Extract cable gently.
Ⅴ. FAQ:
ⅰ). The splitter doesn’t appear to be functioning.
Firstly, check if the LED lights, the power supply is connected and the power switch is turned on. Secondly, make sure all cables are well connected, and are in good condition. Thirdly, make sure the length of the cables is within the MAX supported length of this splitter. Lastly, please try to connect the input device to the display directly to see if it display normally.
ⅱ). If the maximum resolution the four displays supported is not the same, what resolution will be displayed?
After an EDID process, the splitter will choose the lowest one and output to all displays
Ⅵ. Box Contents:
|
Item
|
Qty
|
Remark
|
|
1×4 HDMI splitter
|
1pcs
|
|
|
Power supply
|
1pcs
|
DC 5V@2A
|
|
User Manual
|
1pcs
|
English
|
