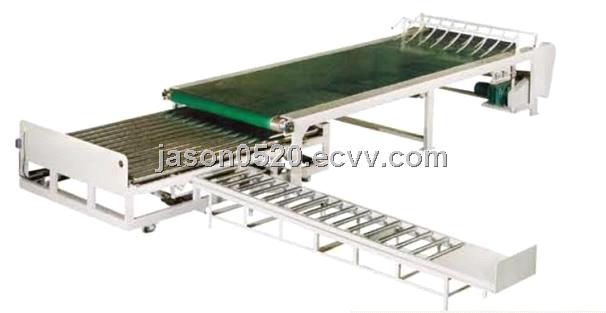

MJDM-6 Right-angle Conveyor and Stacker

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Wooden pallet, or steel pallet

Specifications

Characteristics:

* Automatically stack and collect the paperboard.

* Pneumatic control the transversely output of paperboard, electrical output.

* Vertical paperboard collecting use width belt for transportation.

* When the paperboard stack to required height, the paperboard is output by switch controlled.

★ Technological Parameters:

1.Speed: 60－80m/min.

2. Working width:1600mm.

3. Max. Length of paperboard: 2400 mm.

4. Max.Height of paperboard: 200 mm.

5. Gas: 0.4—0.9Mpa.

6. Steam Pressure: 0.8—1.3Mpa.

7. Operation direction: Left or right (design as customer’s workshop.)

★ Diameter of the rolls:

1. Belt roll: Ø86mm, Surface of roll is chromeplated and polished.

2.Transversely output roll: Ø124mm Surface of roll is chromeplated and polished.

★ Drive Power:

① Main transport motor: 0.75KW 380V 50HZ

② Transversely output motor: 0.55KW 380V 50HZ

③ Running power: 0.55KW 380V 50HZ
