Quanzhou Better Machinery Manufacturing Co., Ltd.
China Manufacturer with main products: Hot Melt Adhesive Machine, Laminating Machines, Coating Machines, Medical Dressing Prodcution Line, Medical Packaging Machine,... |

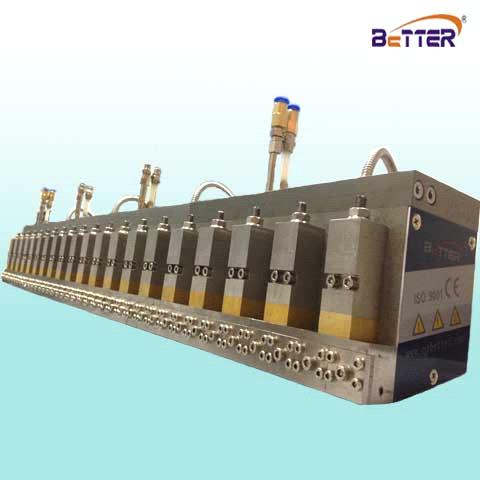

Professional and Accurate Sprayer Coating Head
| FOB Price: | 1.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
| Shipping: | within 30 working days after receiving deposit |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Fujian in China |
| Packaging Details: | SEAWORTHY PACKAGING |
Specifications
Multi-Sprayer Glue Gun
Product description:
The BT-FG series Fiber Glue Gun applies in the non-contact compound spary glue system, using Non-woven industry application's melt to spary the industrial design .
Applies to comply with the strength requirements are relatively high and cannot reverse osmosis of sanitary napkins, diaper, cushioning, composite devices such as viscose.
According to the customer's demand to provide different spraying width and temperature sensor. standard spary glue extra wide to have specifications and so on 30mm, 60 mm, 90 mm, 120 mm, 180 mm, 240 mm, 270 mm, 360 mm, 420 mm.
Features:
1. Gun head made of stainless steel, with good resistance to wear and corrosion resistance.using unique gas open and close pin valve as gap spray glue control, With more sensitive work performance.
2. Built-in high capacity filter reduces the clogging scraping mouth, built-in import special high temperature resistance, Wearability Baptist closure , wearing ring and so on Sealing components with reliable sealing performance, make sure that the gun running stable and durable.
3. Spray the plate with special design, with a small glue wire diameter, spray evenly distributed, etc., in the same compound strength save 15-20% of the amount of glue, edge control accurate, and truly the non-woven fabrics, non-perforated film glue-spraying against infiltration.
4. Using small module splicing assembly technology to clean replacement to be simple. Spray glue craft, theoretically so long as is good for provide glue and air pressure supply, there is in the identical straight line spary glue width.
5. BT-FG series fiber spray gun, there are made of several 30mm width spary mouth module,faster by one screws that more easy and convenient to maintenance.
6. Through modified also applies to other brands of hot-melt Adhesive equipment.
2. Built-in high capacity filter reduces the clogging scraping mouth, built-in import special high temperature resistance, Wearability Baptist closure , wearing ring and so on Sealing components with reliable sealing performance, make sure that the gun running stable and durable.
3. Spray the plate with special design, with a small glue wire diameter, spray evenly distributed, etc., in the same compound strength save 15-20% of the amount of glue, edge control accurate, and truly the non-woven fabrics, non-perforated film glue-spraying against infiltration.
4. Using small module splicing assembly technology to clean replacement to be simple. Spray glue craft, theoretically so long as is good for provide glue and air pressure supply, there is in the identical straight line spary glue width.
5. BT-FG series fiber spray gun, there are made of several 30mm width spary mouth module,faster by one screws that more easy and convenient to maintenance.
6. Through modified also applies to other brands of hot-melt Adhesive equipment.
Back Suction Coating Gun parameter:
|
Item
|
BT-FG30
|
BT-FG90
|
BT-FG120
|
BT-FG180
|
BT-FG240
|
BT-FG360
|
||||
|
Voltage
|
220V-240V
|
|||||||||
|
Power
|
0.3kw
|
0.6kw
|
0.9kw
|
1.2kw
|
1.5kw
|
1.8kw
|
||||
|
Frequency
|
50-60HZ
|
|||||||||
|
Flame state
|
PT100 platinum resistor
|
|||||||||
|
Minimum grams
|
1-2gram/m2
|
|||||||||
|
coating precision
|
±2mm
|
|||||||||
|
Response speed
|
0-2200 Time/min
|
|||||||||
|
Filter types
|
150section
|
|||||||||
|
Air pressure
|
0.4 mpa
|
0.5mpa
|
0.6 mpa
|
|||||||
|
Gross weigh
|
2.3kg
|
3.5kg
|
4.8kg
|
7.0kg
|
9.1kg
|
14.2kg
|
||||
