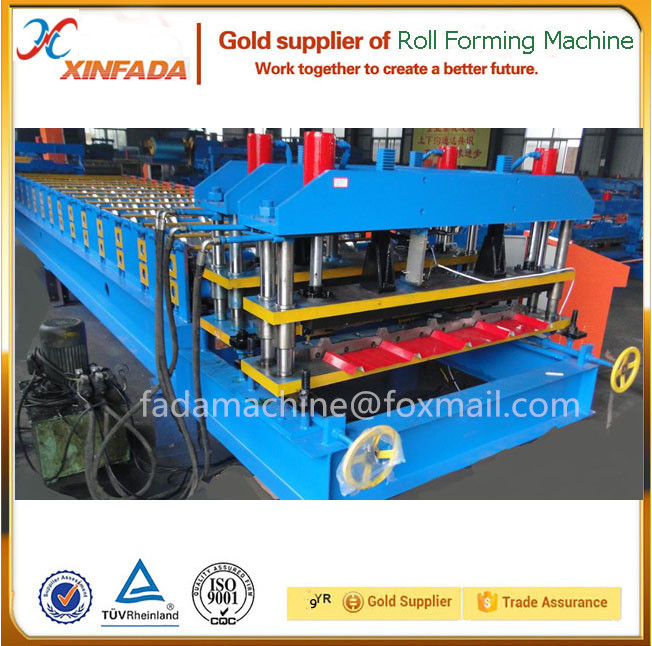

24-210-1050 Roof Panel Color Coil Glazed Tile Roll Forming Machine

FOB Price:	7,000.00 - 10,000.00 USD/Set
Supply Ability:	10 Set(s) per Month
Shipping:	Within 45 Working Days After We get 30% TT as deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Export Markets:	North America, South America, Southeast Asia, Africa, Mid East, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Fit For Shipping Ocean

Quick Details

242101050 Roof Panel Color Coil Glazed Tile Roll Forming Machine

Configurations	Manual Uncoiler,Guiding Platform,Main Machine of Roll Forming,Electro-Motor, Glazed Tile Pressing Device,Cutting Device,Hydraulic Station,PLC Control, Supporter Table.
Control System	NC-PLC Colored Touch Screen
Main Frame	300mmH-Beam
Main Power	4 kw
Pump Power	5.5 kw
Power Supply	380V, 3-Phase,50Hz or any
Forming Speed	2.5-4m/min
Roll Station	14 stands
Shaft Diameter	80mm
Hydraulic Pressure	10-12MPa
Forming Size	1050mm
Feeding Thickness	0.3-1.0mm
Feeding Width	1250mm
Side Panel Thickness	14mm

Cutter Standard	Cr12
Roller Standard	45#steel with chrome coating heat treatment
Cr-Plating Size	0.05mm
Overall Size	8500×1550×1550mm
Total Weight	7T

All technical parameters can be changed,according to user s need.
