Xian Degao Pri. & Dye. Auto Engineering Co.,Ltd.
China Manufacturer with main products: rotary screen printing machine, screen printing machine, flat screen printing machine, second Zimmer re, send hand reggiani rotary screen... |
The Indepedent Transmission & Registration System
| FOB Price: | 100,000.00 - 300,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Year |
| Shipping: | Within 35 days after order is confirmed |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Mid East |
|---|---|
| Place of Origin: | Shaanxi in China |
| Packaging Details: | Wooden Box Export Package |
Specifications

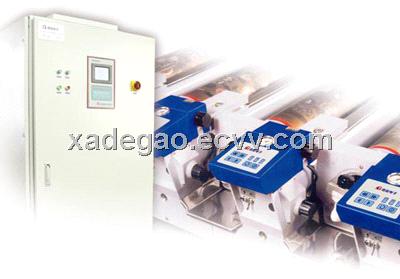

Independent Transmission System
The VIACM16 independent Transmission Automatic Registration System is developed independently by our company,which is applied to the upgrading the old rotary screen printing.
product:
The eight Technology Advantages
1.Module Combination Structure . agile and Simple operation
2.Automatic Regsitration by Computer. High speed and low proportion loss of inferior cloth
3.Changeable speed . put an end to out of registration.
5.Adjustable speed difference . Satisfy different kinds of requirements.
7.Tracing print on stencil, put the perfect printing and stenciling together.
8.High stability,long using life,High performance and lower price.
The VIACM16 independent Transmission Automatic Registration System is developed independently by our company,which is applied to the upgrading the old rotary screen printing.
product:
The eight Technology Advantages
1.Module Combination Structure . agile and Simple operation
2.Automatic Regsitration by Computer. High speed and low proportion loss of inferior cloth
3.Changeable speed . put an end to out of registration.
5.Adjustable speed difference . Satisfy different kinds of requirements.
7.Tracing print on stencil, put the perfect printing and stenciling together.
8.High stability,long using life,High performance and lower price.
Technology:
Matching Color:≤ 24 24colors
Breadth: Unlimited
Average speed: 100m/min
The highest speeed: 120m/min
The precision of checking for longitudinal:≤ 0.03mm
The precision of executing for longitudinal:≤ 0.05mm
Starting wastage of registration : 50% lower after reform
SPEED difference between rotary and transmission belt: Adjustable between the range of +8%~-8%
Time of screen changing: 50% less after reform
Operation of longitudinal registration :Automatic
Kinds of colors and patterns: delicate pattern
Matching Color:≤ 24 24colors
Breadth: Unlimited
Average speed: 100m/min
The highest speeed: 120m/min
The precision of checking for longitudinal:≤ 0.03mm
The precision of executing for longitudinal:≤ 0.05mm
Starting wastage of registration : 50% lower after reform
SPEED difference between rotary and transmission belt: Adjustable between the range of +8%~-8%
Time of screen changing: 50% less after reform
Operation of longitudinal registration :Automatic
Kinds of colors and patterns: delicate pattern
Two ways to choose
Fengying A series
Executive center adopt the step motor driver
The VI Independent Transmission Automatic Regsitration System Huanying C Series
Executive center adopt the import servomotor driver
The VI independent Transmission Automatic Registration System huanying C+C series
Exective center asopt the import servomotor driver
The VI Independent Trqnsmission Automatic Registraion system
+C means the whole electric control reform
1) The main transmission adopts the importer sevomotor
2) The same stps reform both the fabric in or out and the dry-room
3)Use the now control-cabinet
Most or the main parts are from abroad.
Fengying A series
Executive center adopt the step motor driver
The VI Independent Transmission Automatic Regsitration System Huanying C Series
Executive center adopt the import servomotor driver
The VI independent Transmission Automatic Registration System huanying C+C series
Exective center asopt the import servomotor driver
The VI Independent Trqnsmission Automatic Registraion system
+C means the whole electric control reform
1) The main transmission adopts the importer sevomotor
2) The same stps reform both the fabric in or out and the dry-room
3)Use the now control-cabinet
Most or the main parts are from abroad.
Independent Transmission System
The VIACM16 independent Transmission Automatic Registration System is developed independently by our company,which is applied to the upgrading the old rotary screen printing.
product:
The eight Technology Advantages
1.Module Combination Structure . agile and Simple operation
2.Automatic Regsitration by Computer. High speed and low proportion loss of inferior cloth
3.Changeable speed . put an end to out of registration.
5.Adjustable speed difference . Satisfy different kinds of requirements.
7.Tracing print on stencil, put the perfect printing and stenciling together.
8.High stability,long using life,High performance and lower price.
The VIACM16 independent Transmission Automatic Registration System is developed independently by our company,which is applied to the upgrading the old rotary screen printing.
product:
The eight Technology Advantages
1.Module Combination Structure . agile and Simple operation
2.Automatic Regsitration by Computer. High speed and low proportion loss of inferior cloth
3.Changeable speed . put an end to out of registration.
5.Adjustable speed difference . Satisfy different kinds of requirements.
7.Tracing print on stencil, put the perfect printing and stenciling together.
8.High stability,long using life,High performance and lower price.
