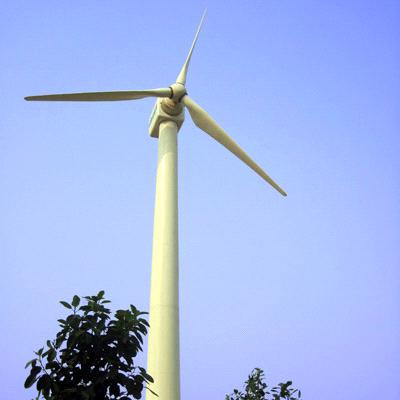

50kw China wind mill,Wind Turbine,Wind Turbine Generator Manufacturer

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Rotor diameter:	18.0m
Blades quantity:	3pcs
Direction:	always downwind
Blades material:	Carbon fiber reinforced plastic
Rated output:	50KW
Power supplied to Grid	55KW [in 5seconds]
working voltage:	DC500-800V,AC380V
Annual average energy production:	110MWH (in rate 5m/s wind speed)
working wind speed:	3-35m/s
Initial wind speed:	2.5m/s
Nominal wind speed:	10.0m/s(33.6mph)
Storm-stand:	up to 55m/s
Max rotate speed:	60r/min
Wind turbine type:	Three-phase, PMG Alternator
Working temperature:	from -40 to +60 C
Blade Pitch Control	Variable Pitch
Over-speed Protection	Aerodynamic brake + Electromechanical disc brake
Speed Regulate and Shut Down Methods	Electro-Yawing,Positive Pitch and Electric Magnet Switch.
Gearbox:	None, Direct Drive
Tower style and height	Free-standing tower 15m, 18m up to 35m.
