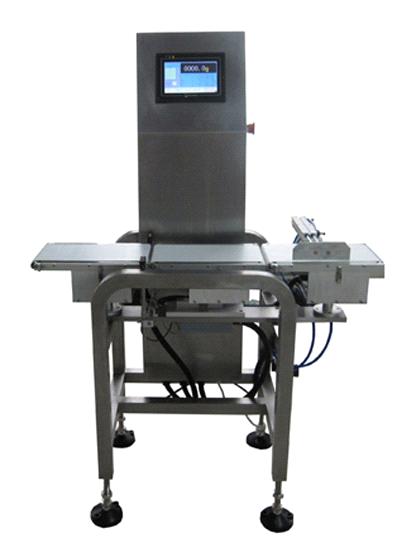

High Speed Check Weigher CW-N158

Supply Ability:	300 Set/Sets per Month
Shipping:	15 days
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	Plywood Case

Specifications

Check Weigher CW-N158 (High Speed)

Online Weight Checking and Sorting

[FEATURES]

1. Strong stainless steel structure; Water proof design.

2. High accurate load cell; Based on advanced DSP technology.
3. Automatic weighing compensation and zero tracking.
4. 100 products preset; Easy to edit and recall.
5. Quickly product shift and speed recall.
6. 2000 sorting records; Printer output ready.
7. LCD with Touch screen; Friendly operation interface.

[APPLICATIONIS]

●Online foods package weighing and sorting.

●Applied to packing foods quality control.

●Used to check unit product’s weight whether meet target object, and automatically

reject sub-standard products.

[SPECIFICATIONS]

Type	CW-N158
Weighing Range	5-200g	6-600g
Conveying Speed	40-90m/min(adjustable)
Speed	Max.200packs/min	Max.150packs/min
Accuracy	±0.3g	±0.6g
Minimum Scale(g)	0.1	0.1
Belt Width	158mm
Weighing Method	Weighing Sensor
Operational Method	Color LCD Touch Screen(Multilingual)
Alarm	Buzzer, Lamp
Rejection	Air Jet Type/ Flapper Type/ Pusher Type
Products Preset	100kinds
Power Supply	AC110V/220V 50-60HZ
Rated Output	100W
Air Supply	0.6-1Mpa
Air Pressure Connection Point	￠8mm(Optional)
Prepared Connection Point	Printer, Signal Feedback
Weight	Appr.97Kg
Conveyor Height	780±50mm(Can be optional based on requirement)
Dimension	850mm(L)520mm(W)1350±50mm(H)

●Above is standard data, different products size and working environment may effect above data.
