Specifications
Scope of HGM8021 grinding mill products : Shanghai Clirik Machinery Co., Ltd. is a manufacturer of HGM series grinding mill, rock grinding mill, stone grinding mills, milling machinery, ultrafine powder mill, and powder ultra fine mill. Wor

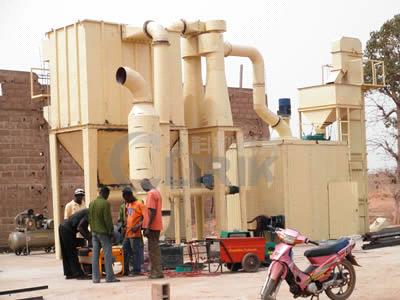

Introduce Of HGM9024 Micro Powder Grinding Mill
Scope of HGM9024 grinding mill products:
Shanghai Clirik Machinery Co., Ltd. is a manufacturer of HGM series grinding mill, rock grinding mill, stone grinding mills, milling machinery, ultrafine powder mill, and powder ultra fine mill.
Working principle of HGM9024 grinding mill:
The main bearing and each dial are driven by electromotor of main machine through reducer, and numbers of rollers, which are rolling in the ring, are driven by dial through plunger. After crushed by hammer crusher, the big materials become small ones and are sent to storage hopper by elevator and further sent to the middle of first dial evenly by the electromagnetic vibrating feeder and feeding pipe. The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinded by roller, and become powder after production of three rings. The high pressure centrifugal blower will inhale air from outside and blow the crushed materials to classifier. The rotating turbo in the powder concentrator will make the coarse materials return to the mill and reground, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it. The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.
Features
1. The grinding mill of HGM9024 is high efficient (twice as much as jet mill, mixing grinder and ball mill)
2. The spare parts of grinding mills can serve much longer time (2-3 times longer than that of impact mill or turbo mill.
3. High safety and reliability of the ultrafine mill (no rolling bearings and screws in the grinding cavity, so no problems caused by the wear of bearings or screws)
4. The HGM9024 Grinding mills are characterized by high fineness (final size: 325-3000 mesh, D97<5 micron)
5. Environment-friendly
Applications
Grinding materials of our HGM9024 grinding mill include various stones and rocks, such as: Kaolin, limestone, calcite, marbles, barites, gypsums, pyrophyllites, dolomites, calcium carbonates, pigments, clays, coals, carbon black, activated carbons, feldspar, talc, mica, carbon black, petroleum coke, alumina, chromic oxide, quartz, cements, up to more than 100 materials.
Technical Data
|
Model
|
HGM8021
|
HGM9024
|
HGM10027
|
HGM10036
|
|
mm(Ring Diameter)
|
800
|
900
|
1000
|
1000
|
|
Ring Number/ pcs
|
3
|
3
|
3
|
4
|
|
Roller Number/ pcs
|
21
|
24
|
27
|
36
|
|
Main Shaft Speed /r.p.min
|
230
|
200
|
180
|
180
|
|
Input Size/mm
|
≤20
|
≤20
|
≤20
|
≤20
|
|
Finished Size/μm
|
5-47
|
5-47
|
5-47
|
5-47
|
|
Capacity t/h
|
0.4-4.5
|
0.4-5.5
|
0.6-6.5
|
0.7 -7.5
|
|
Outlet Size LxWxH/m
|
13.9x4x6.2
|
14.7x4.8x7.2
|
18x4.6x8.6
|
18x4.6x8.6
|
|
Power/ kw
|
145
|
192
|
263
|
263
|
