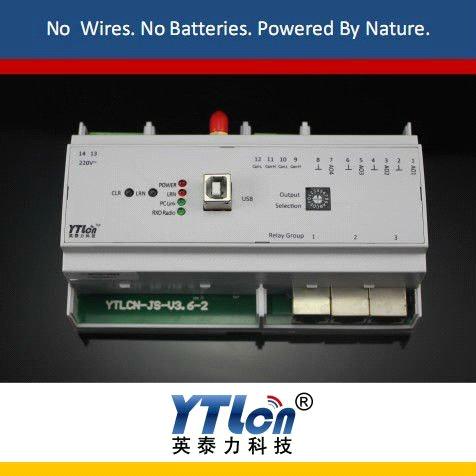

315MHz 4 channel receiver

Inquiry Now

Specifications

.Easy installation, easy maintenance
2.Support various switching modes
3.Up to 4 outputs
4.Control various electric devices.

Product Features:

l 4 Channel Receiver (JS04N) receives sensing information from sensor units (such as wireless wall switch, window contact, and etc.), output 0/5V control signal to 4 channel control module (YTL-TD04-01) to turn equipment (lights, fans, and so on) on or off.

l Each receiver may connected with 1 control module, and each modules may control 4 channels, so total 4 channels can be controlled by a receiver.

l The receiver has an interface to YTL Bus, which can be used to form a control network and implement centralized control.

l A configuration software is supplied with the receiver for users to configure it using a PC, or back up receiver configuration to your PC.

Control Module Technical Data:

Max Load	< 1000W/channel (Resistive load)
Operating Voltage	5V
Electrical life	100,000 Times
Operating temperature	-20°C - 60°C
Dimensions	85mm x 65mm x 65mm
Mechanical data	Flame Retardant ABS
