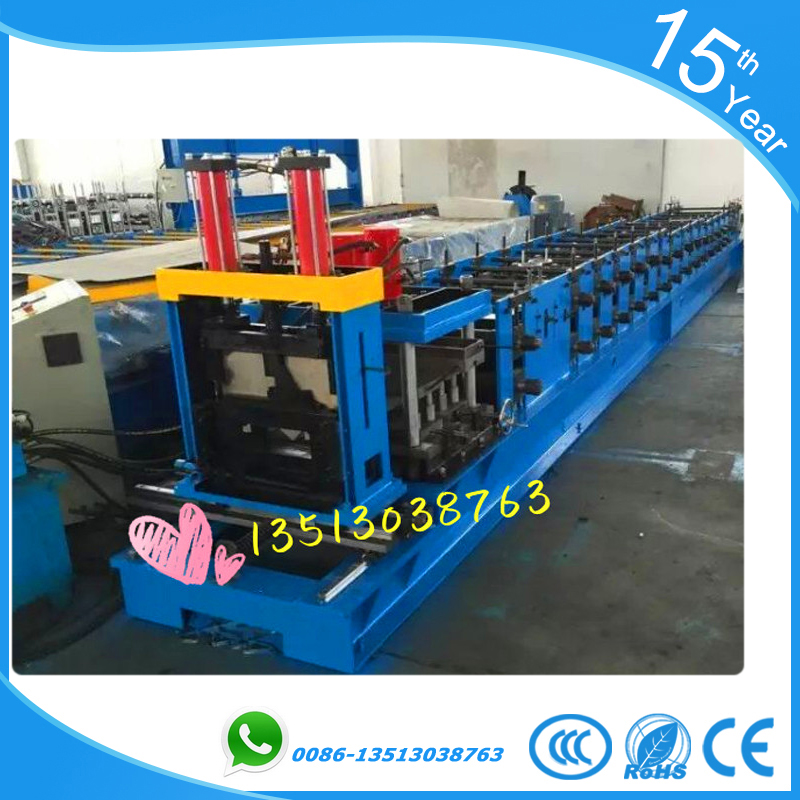

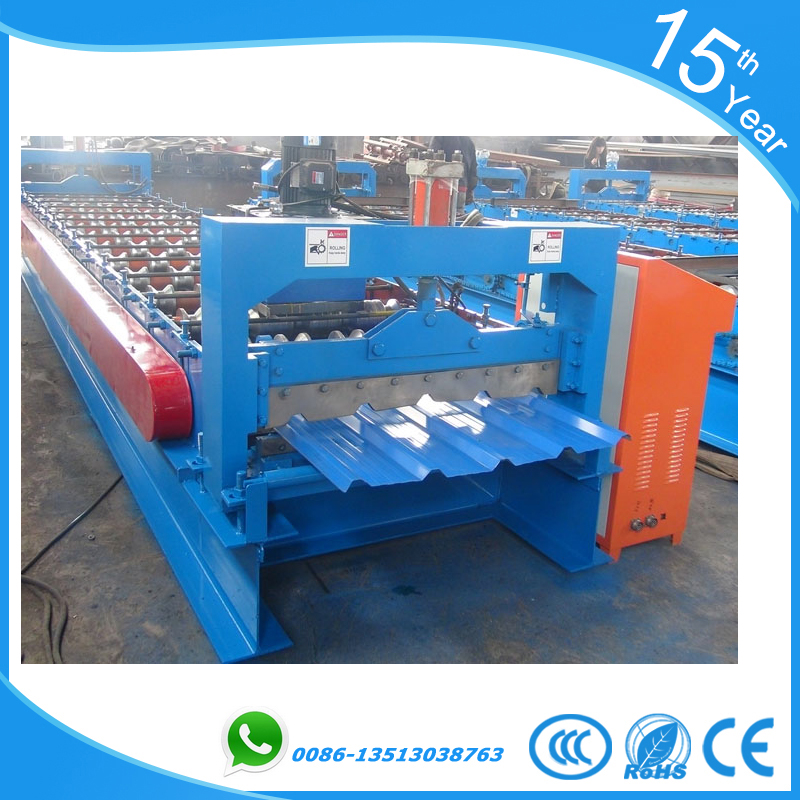

C Channel Roll Forming Machine/Frame Roll Forming Machine
| FOB Price: | 15,000.00 - 18,000.00 USD/Set |
|---|---|
| Supply Ability: | 5 Set(s) per Month |
| Shipping: | Within 50 Working Days after get 50%TT as deposit |
| Payment Terms: | T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | Fit For Shipping Ocean |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: 80-300
- Frame of Machine: 300H steel welding
- Forming Station: 12 Groups
- Main Motor Power: 11KW
Specifications
C Channel Structure Forming Machinhe/Plate Sheet Forming Machine
Having been exported to a few foreigh countries and regions,C Channel Structure Forming Machinhe/Plate Sheet Forming Machine is of good quality and reasonable price.
Detailed of description of C Channel Structure Forming Machinhe/Plate Sheet Forming Machine
1. Dimension of Purln Machine: 9.5m(L)*1.5m(W)*1.2m(H)
Having been exported to a few foreigh countries and regions,C Channel Structure Forming Machinhe/Plate Sheet Forming Machine is of good quality and reasonable price.
Detailed of description of C Channel Structure Forming Machinhe/Plate Sheet Forming Machine
No. |
main parameter of Roll forming machine | |
1 |
Suitable to process |
Color steel plate |
2 |
Width of the plate |
175-465mm |
3 |
Rollers |
13rows |
4 |
Dimensions |
7.5*1.35*1.51m |
5 |
Power |
7.5+4kw |
6 |
Thickness of the plate |
1.5-3mm |
7 |
Productivity |
8-10m/min |
8 |
Diameter of the roller |
Φ70mm |
9 |
Weight |
about 5.5T |
10 |
Voltage |
3580V 50Hz 3phases |
11 |
Material of the cutting plate |
Cr12 |
12 |
Hydraulic |
40# |
13 |
Processing precision |
Within 1.00mm |
14 |
Control system |
PLC control |
1. Dimension of Purln Machine: 9.5m(L)*1.5m(W)*1.2m(H)
2. Total weight: about 6~6.5T
3. Main motor power: 11kw
4. Reducer: cycloidal planetary speed reducer.
5. Material of structure:: GB 350mm" H" steel
6. Chains: 2 inch
5. Material of structure:: GB 350mm" H" steel
6. Chains: 2 inch
7. Thickness of MID-plate: 18mm
8. Material shaft: 45# steel, diameter: 80mm, Quenched after the finished form. Orign: Shougang Beijing
8. Material shaft: 45# steel, diameter: 80mm, Quenched after the finished form. Orign: Shougang Beijing
9. Leveling machine: 9 roller flatteing, diameter of roller: 110mm, usingφ 114mm wall thickness
15m 45# seamless steel tube, finish maching, hard chrome plating on surface.
10. Die roller: all adopt Gr15(ball bearing steel), through hammer, finish machining, quenching(hardness: 50° ~52° ), line cutting at the keyway, then hard chrome plating on surface.
11. Adjust set: adopt 45#steel, seaming steel tube through finish maching, line cutting cut snaps forming.
12. Roller: 14 axis
13. Auxiliary wheel: 6 rows adjustment auxiliary wheel.
14. Specification of C purlin machine: adjust width(80-300mm) wall height(40-80mm)
15. Thickness of plate: 2-3mm
16. Working speed: 8-20m/min
17. Type replacement method: external nud adjust
Twist off, punching machine(rolling speed when punching within 6m/min)
1. Dimension: 1.2m(L)*0.9m(W)*1.2m(H)
2. Hydraulic station: 7.5kw
3. Diameter of Twisting off pump: 180mm, range: 100mm
4. Puching mould: Cr12 heat treatment, precision grinding, line cutting.
5. Electric equipment: imported TAIDA 24 points PLC, encoder. Chint, Delixi and other control parts from other countries
6. Twist off mould: Gr12 quenched heat treatment, precision grinding, line cutting forming, can customize as client' s demand
Have twisting off mould: 5 sets
(advantage)
1. this machine use 9 rollers level, effective flating, drive adopt coupling activity, can automatically out of touch with host, Avoid synchronization difficult to bring equipment to run
2. Roller die: adopt Gr(bearing steel)hardness, Wear resistance. General 1 year no obvious wear, hard chromium plated to increase resistance
3. Main machine adopt external nut adjust, Quick and easy replacement when the utility model. Hookswitch adopt 45 # steel with fine cars, quenching, line cutting and high hardness, will not bend
4. Adjust set: Using snap-in, uninstall convenient, good interchangeability, easy off, easy to change
5. Forming way: Cold gradually forming
6. High degree of automation, labor saving, save time, the material standard
We have more styples,contact us to get more information about C Channel Structure Forming Machinhe/Plate Sheet Forming Machine
We have more styples,contact us to get more information about C Channel Structure Forming Machinhe/Plate Sheet Forming Machine
