Crane External Support Pedant Cable 300/500V

Supply Ability:	10,000,000 Meter(s) per Week
Shipping:	7 days after receiving the deposit
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shanghai in China
Packaging Details:	WOODEN DRUM

Quick Details

Conductor Material: Copper
Application: Industrial
Type: Low Voltage
Insulation Material: PVC
Brand Name: ECHU/OEM
Jacket: PVC
Model Number: RVV1G RVV2G
Conductor Type: Stranded

Specifications

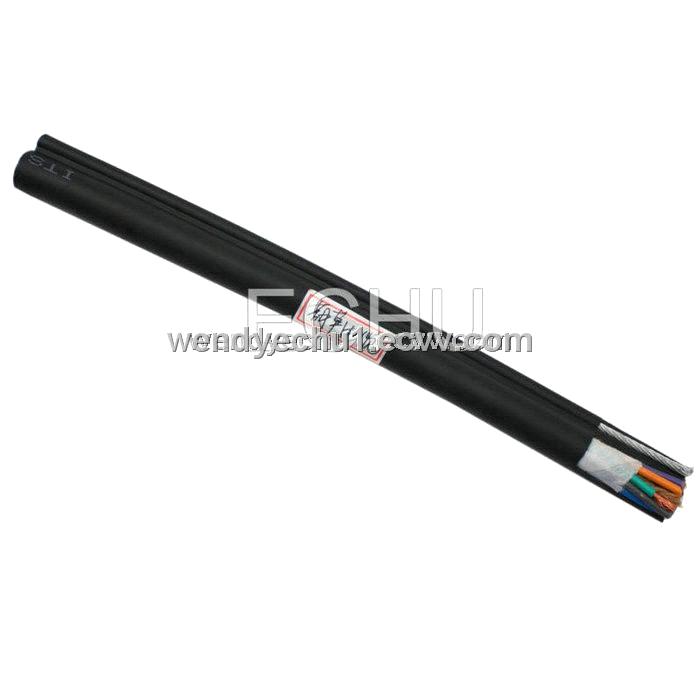

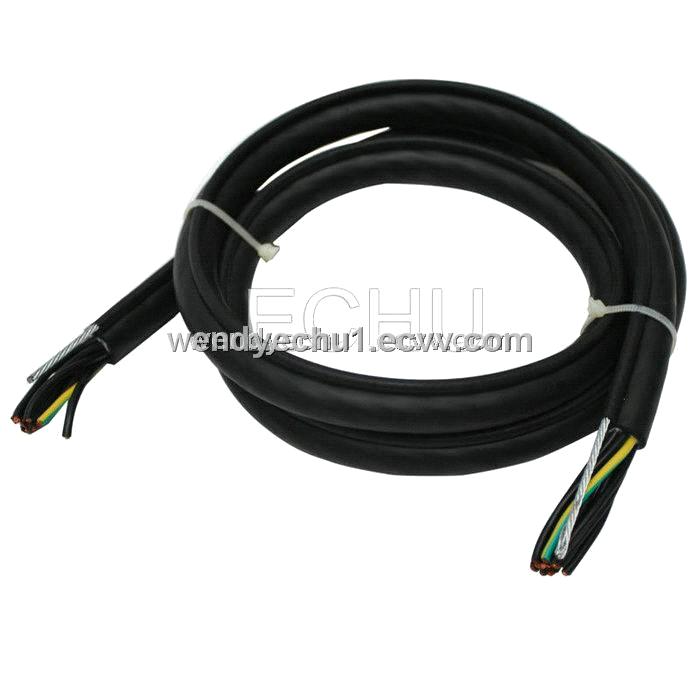

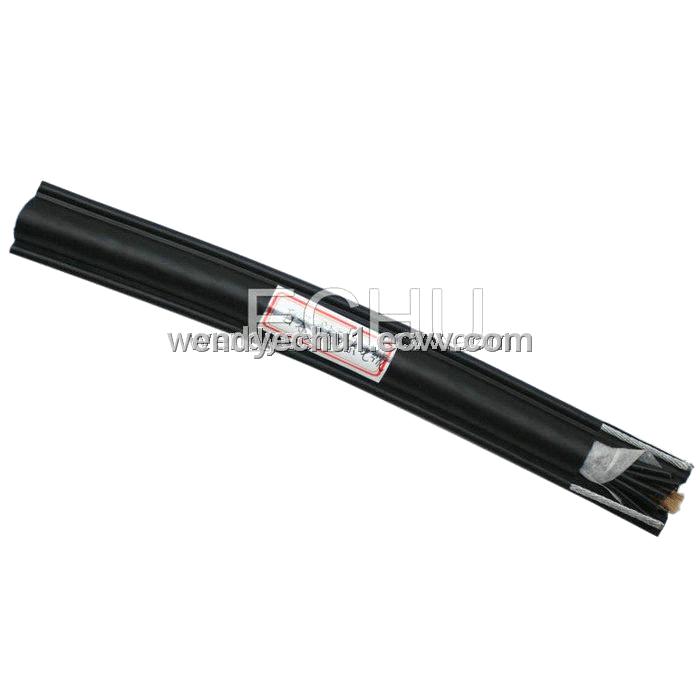

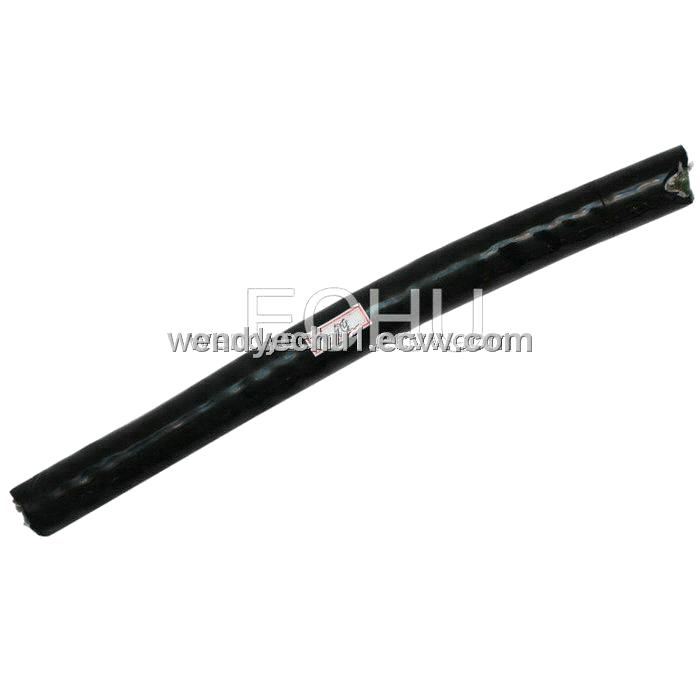

Crane External Support Pedant Cable 300500V PVC 2 External Support Lift Cable 300/500v
Push Button Electrical Cable
Round Cable with Supporting Steels for Lift & Crane
Electric Cable for Hoists Push Button Cable with Steel (RVV1G 12X1.25)

Applications:
It is the control cable being used for cranes and other appliances in
Dry or wet environment/(indoor). for its special flexibility, it also can
Be used for non-continuous installation or fixation, but cannot work
as elevator cables. Jutted insulated cable rope among cores functions
as tensile resistance, There is non-woven fabric to release impact be
Tween cores and sheath.

Properties:
in the condition of ultra-height, we recommend to use cable with 2 steels
Whose broken pulling force reaches 10.4KN and the height 150m.
for the adoption of modified PVC sheath, the product has an excellent
Properties and safety service.

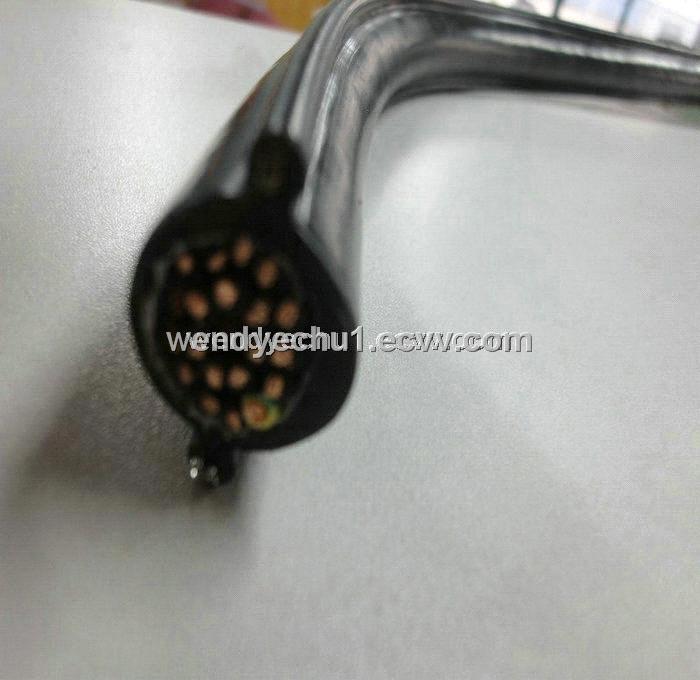

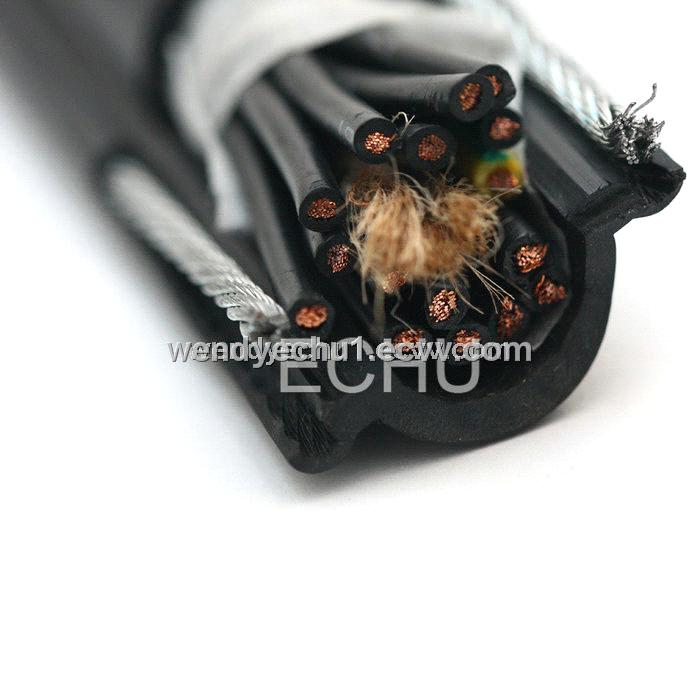

Structure:
Conductor: Fine strands of oxygen-free copper wire
Acc. to VDE0295, class5
Colour: various colour cores with number acc. to JISC3306
Black with white number and green/yellow acc. to IEC227
Inner liner: non-woven fabric wrapping to release impact
Steel rope: One or two self-supporting steel rope is used to carry
Tensile force in working.
Outer sheath: special PVC, black (RAL9005)

Technical data:
Rated voltage: 1.5mm: 300/500V 1.5mm: 450/750V
Test voltage: 1.5mm: 2500V 1.5mm: 3000 V
Temperature range: -15 to +70
Bending radius: 20 X outer diameter
