vibratory plate compactor

FOB Price:	200.00 - 1,200.00 USD/Set
Supply Ability:	2,000 Set/Sets per Month
Shipping:	FOB Ningbo
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	One set per carton with steel frame.

Specifications

Detailed Product Description

Gasoline Vibratory Plate Tamper
Vibrating Plate Tamper
Forward Plate Tamper
Reversible Plate Tamper
GasolineDiesel

Gasoline Vibratory Plate Tamper

Vibratory Plate Tampers - Walk behind / One way / forward, reversible, and hydraulic reversible plate compactors. Powered by reliable Honda, Robin, KOHLER gas engines or heavy duty KAMA diesel engines. Vibratory plate compactors with top performance, easy handling, low maintenance, and long life. Available for online purchase with fast delivery.

Gasoline Vibratory Plate Tamper Features:

Plate Tampers are low amplitude and high frequency, designed to compact granular soils and asphalt. Gasoline or Diesel engines drive one or two eccentric weights at high speed to develop compaction force. The heavier the plate, the more compaction force it generates. The resulting vibrations cause forward motion also known as a One Way/Walk Behind/Forward Plate Compactor. Reversible and Hydraulic Reversible Compactors have a reversible plate to allow forward and reverse motion. Unlike standard plates, the reversible forward travel may be stopped and the machine will maintain its force for "spot" compaction. Due to their weight and force, reversible plates are ideal for semi-cohesive soils.

Gasoline Vibratory Plate Tamper Specification

The best seller Gasoline Vibratory Plate Tampers in CONSMAC are the SPC80, SPC90, SPC100 and SPC160 compactors due to their high cost performance.

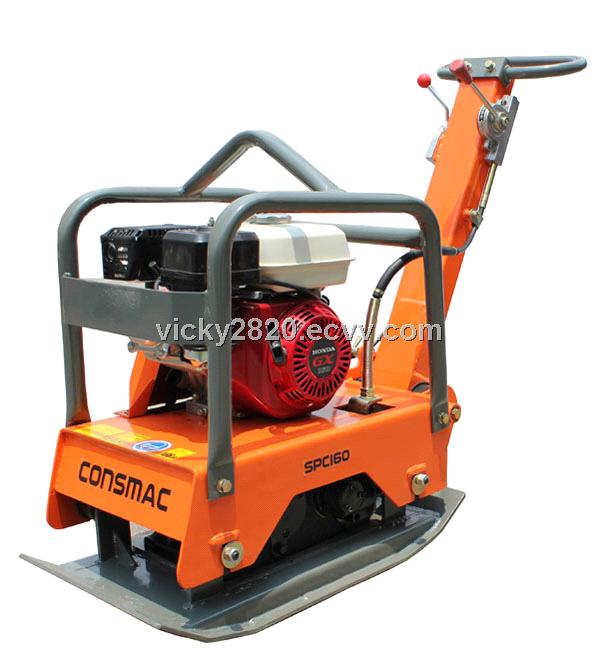

Below is the SPEC for CONSMAC SPC160 Reversible Plate Tampers.

Model	SPC160H	SPC160R	SPC160L	SPC160K
Engine	Air-cooled,single cylinder, 4-stroke
Engine Type	Petrol,Honda GX160	Petrol,Robin EY20	Pertrol,Lifan 168F-2	Diesel,KAMA 178F
Power	5.5hp/4.0kw	5.0hp/3.7kw	6.5hp/4.8kw	5.5hp/4.0kw
Operation Weight	168kg(370lbs)	171kg(377lbs)	135kg(298lbs)	180kg(397lbs)
Centrifugal Force	30.5kn(3110kgf)
Vibration Frequency	4000vpm(67hz)
Compaction Depth	50cm(19in)
Travel Speed	25cm/s(10in/s)
Efficiency	570m²/hr(6100ft²/hr)
Plate Size	7337cm(2915in)
Carton Size	865793cm(342237inch)
Standard Accessory	Roll Cage
Optional Accessory	Neoprene Paving pad,Trolley wheel,Extension Plate

All CONSMAC Gasoline Vibratory Plate Tampers are available for online purchase with fast delivery.

Please feel free to contact us at Phone No: 0086- 574- 88192352, or send us enquiries on line, all your mails will be replied within 24 hours.
