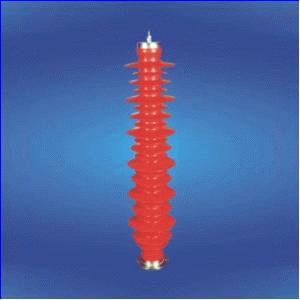

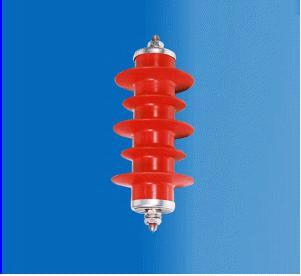

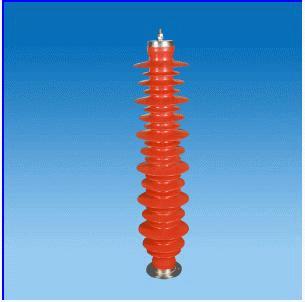

Composite Zinc Oxide Surge Arrester
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications
Description of Composite Zinc Oxide Surge Arrester
Product Name: Composite Zinc Oxide Arrester
Place of Origin: Zhengzhou China
Modes of Transport : By Sea
Payment Terms: L/C, T/T
Product Name: Composite Zinc Oxide Arrester
Place of Origin: Zhengzhou China
Modes of Transport : By Sea
Payment Terms: L/C, T/T
Ⅰ, Technical Advantage
The non-gap AC zinc oxide surge arrester is a new over-voltage protector with perfect performance. It is suitable for protecting electric equipment of AC system and avoiding the harm from over-voltage operation and lightning and has many advantages like, compact size, light in weight, anti-dust, burst-proof and easy installation and transportation etc. High quality composite zinc oxide arrester adopts the zinc oxide block inside, which has various merits like good steep wave response without following current and lower of operation residual voltage, less distribution of discharging, etc. High voltage post insulator has abilities of absorbing various lightning and operational over-voltages as well.
Ⅱ, Normative Reference
IEC 60099-4AMD1
III, Major Technical Parameter
|
Type
|
Total Height mm
|
Insulation Distance mm
|
Creepage Distance mm
|
Installation Dimension mm
|
Continuance Operation Voltage, kV |
U
|
Lightning Impulse Residual Voltage, ≯kV |
Steep Wave Residual Voltage, ≯kV |
Operation Residual Voltage, ≯kV |
|
HY5WS-17/50(outer)
|
210
|
190
|
315
|
M10
|
13.6
|
25
|
50
|
57.5
|
42.5
|
|
HY5WZ-17/45
|
189
|
169
|
400
|
M10
|
13.6
|
24
|
45
|
51.8
|
38.3
|
|
HY5WR-17/46
|
280
|
185
|
330
|
M12
|
13.6
|
24
|
46
|
/
|
35
|
|
HY5WZ-51/134
|
560
|
510
|
1240
|
UpperM12 Down
3× Φ 12
|
40.8
|
73
|
134
|
154
|
114
|
|
HY10WZ-102/266
|
1280
|
1080
|
3040
|
UpperM16 Down
4xΦ 16
|
79.6
|
148
|
266
|
297
|
226
|
|
HY10WZ-108/281
|
1280
|
1080
|
3040
|
UpperM16 Down 4xΦ 16
|
84
|
157
|
281
|
315
|
239
|
|
HY10WZ-204/532
|
2560
|
2160
|
6080
|
UpperM16 Down 4xΦ 16
|
159
|
296
|
532
|
594
|
452
|
|
HY10WZ-216/562
|
2560
|
2160
|
6080
|
UpperM16 Down 4xΦ 16
|
168.5
|
314
|
562
|
630
|
478
|
