SD Video conference cameras

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China

Specifications

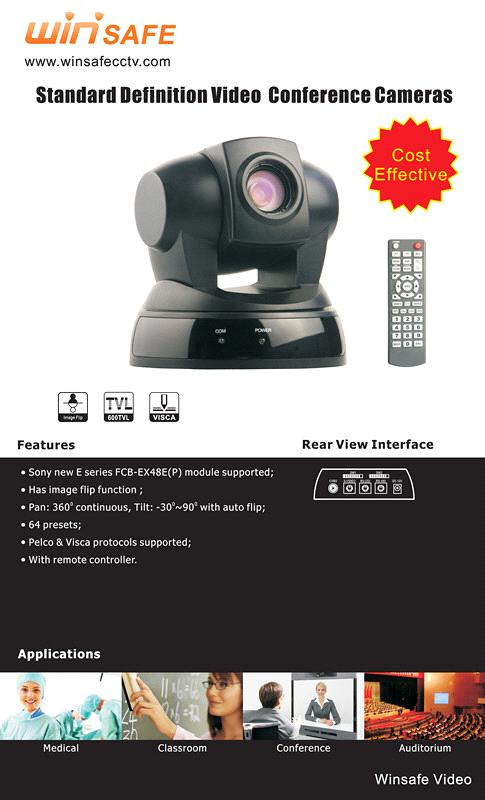

Features
◆Sony new E series FCB-EX48EP module supported; ◆Has image flip function(only for Sony module); ◆Pan 360 degree continuous, tilt - 30-90 degree with auto flip; ◆64 presets; ◆RS485/RS422 &RS232 communication interface; ◆Pelco & Visca protocols supported; ◆With remote controller; ◆Data screen to display image value.
Specifications
Model	WS-VC48
Video Signal	NTSC/PAL
Video Output	VBS(RCA);S-Video
Image Sensor	1/4"CCD Sony new E series FCB-EX48E(P)
Effective Pixels	PAL:440,000 Pixel/NTSC:380,000 pixel
Horizontal	550TVL
Synchronization	Internal
Shutter	Pal:1/3 - 1/10000sec/NTSC:1/4 - 1/10000sec
S/N Ratio	Not less than 50dB
Optical Zoom	18X
Digital Zoom	12X
Lens	F1.4～F3.0, f=4.1～73.8mm
Focus	Auto / Manual
AGC	Auto / Manual
BLC	On/Off
Pan/Tilt Speed	Pan:0.10～2000/sec;Tilt:0.10～1500/sec
Pan/Tilt Range	Pan:0°～360°,Tilt:-30°～90°
Image Flip	Supported
Presets	0～255
Comm Port	RS485/422 RS232
Protocol	Pelco-D,Pelco-P, VISCA
Bade Rate	1200,2400,4800,9600,19200bps
Operation	0°C～＋40°C
Storage Temp	–20°C～＋60°C
Humidity	Not more than 95%, no condensation
Power	12VDC,＜10W
Dimensions	156 X 137 X140 mm
