Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	1U 19inch Rack Mount Classis package

Specifications

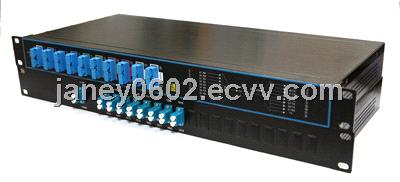

Flyin Optronics' 8-CH CWDM in 1U Rack Mount classis is also available for Cisco Standard Type package, it provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.

Features:
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Access Network

Applications:
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Acess Network

Parameter		4 Channel		8 Channel		16 Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength (nm)		1270~1610
Center wavelength Accuracy (nm)		± 0.5
Channel Spacing (nm)		20
ChannelPassband (@-0.5dB bandwidth (nm)		> 13
Insertion Loss (dB)		≤ 1.6		≤ 2.5		≤ 4.5
Channel Uniformity (dB)		≤ 0.6		≤ 1.0		≤ 1.5
Channel Ripple (dB)		0.3
Isolation (dB)	Adjacent	N/A	> 30	N/A	> 30	N/A	> 30
	Non-adjacent	N/A	> 40	N/A	> 40	N/A	> 40
Insertion Loss Temperature Sensitivity (dB/° C)		< 0.005
Wavelength Temperature Shifting (nm/° C)		< 0.002
Polarization Dependent Loss (dB)		< 0.1
Polarization Mode Dispersion		< 0.1
Directivity (dB)		> 50
Return Loss (dB)		> 45
Maximum Power Handling (mW)		300
Operating Temperature (° C)		-5~+75
Storage Temperature (° C)		-40~85
Package dimension (mm)		L100 x W80 x H10			L142 x W102 x H14.5

Ordering information
Channel Spacing	Channel Number	Add/Drop Wavelength	Pigtail	Fiber length	Connector
CWDM Grid	04=4Channel 08=8 Channel 16=16Channel 18=18channel N=N channel	1470nm 1490nm 1510nm … … 1590nm 1610nm	1=Bare fiber 2=900um loose tube 3=2mm cable 4=3mm cable	1=1m 2=2m 3=special	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=ST
