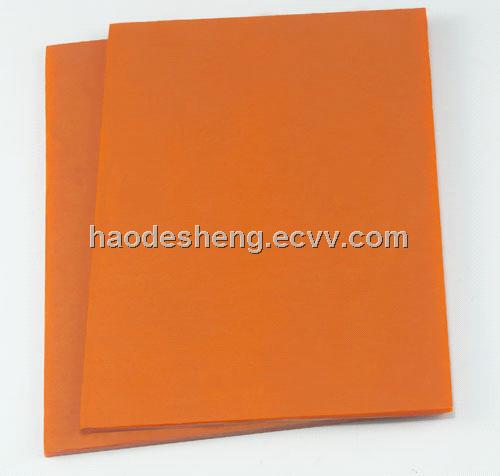

Insulation bakelite plate

FOB Price:	2.26 - 2.62 USD/Kilogram
Supply Ability:	300,000 Kilogram per Month
Shipping:	15days after the receipt of the deposit
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Semi-Rigid Coaxial Cable-PTFE Insulation(SR141,...

Price:

Min. Order:50 Kilometer
Insulation Resistance Megger

Price:1.00-2,000.00 USD/Set

Min. Order:1 Set
Spiral Wound Polyimide tubing/Kapton tube/pipe/...

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Zhejiang in China
Packaging Details:	Pallet or according to customer requirement

Specifications

Product name: Insulation bakelite plate

Technical parameters

Serial number	Properties		Unit	Measured value
1	Color			Red/Black
2	Thermal stability(continuous)	≥	°C	140
3	Thermal stability(short time)	≥	°C	300
4	Density		g/cm3	1.45
5	Coefficient of linear thermal expansion		Kx	10
6	Impact strength	≥	KJ/m2	67
7	Flammability(UL94)		HB	94
8	Flexural strength perpendicular to laminations	≥	MPa	120
9	Compression strength perpendicular to laminations	≥	MPa	250
10	Tensile strength	≥	MPa	100
11	Adhesive strength	≥	N	3600
12	Insulation Resistance after impregnated in water	≥	Ω	1.0×108
13	Dielectric Strength Perpendicular to Laminations (in 90±2°C transformer oil, 1mm in thickness)	≥	KV/m	12.1
14	Breakdown voltage parallel to laminations(in 90±2°C Transformer oil)	≥	kV	10
15	Permittivity(1MHz/50Hz)	≤	—	5.5
16	Volume resistance		Ω x cm	10-7~10-8
17	Surface resistance		Ω	1023
18	Bibulous rate	≤	—	1.5

Application

(1) Used as the insulating structural parts for a motor, electrical equipment which has higher requirements about mechanical performance , and can be used in transformer oil;

(2) Suitable for electrical, mechanical mould, PCB, ICT fixture. Molding machine, drilling machine, mesa grinding plate. ICT,ITE rule the processing of the insulation parts,test fixtures,silicon rubber keypads mold ;

(3) Good mechanical strength , it is suitable for plate, power distribution boxes, fixture plate, mould plate, high and low voltage distribution box, packing machine, comb, etc in drilling of PCB industry .

Specification

1) Excellent electrical insualtion ;
2) Customized color,size ;
3) Good mechanical performance.

Characteristics

(1) Non-absorbent, non-conductive ;

(2) High strength , good insulation properties;

(3) Wear-resisting and thermostable characteristic ;

(4) Excellent electrical, mechanical and processing properties .
