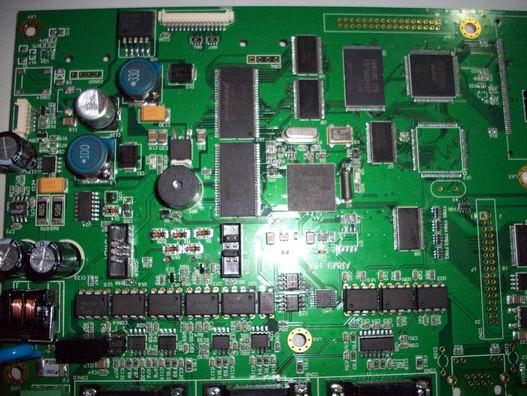

Surveillance Camera Board

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Oceania, Western Europe

Specifications

Detailed Product Description

Quick Details

Place of Origin: Guangdong China (Mainland)	Brand Name: HX	Model Number: HX-PCBA-00383
Base Material: FR-4	Copper Thickness: 1oz	Board Thickness: 1.6mm
Min. Hole Size: 0.1mm	Min. Line Width: 0.1mm	Min. Line Spacing: 0.1mm
Surface Finishing: Hasl

Packaging & Delivery

Packaging Detail:	Inner packing :Vacuum Package. Outer packing:Standard Carton.
Delivery Detail:	PCB:5-7 days PCBA:20-25 days

Specifications

1.FR-4 pcb assembly
2.UL,SGS,ROHS Certificated
3OEM&ODM are welcome
4.test via AOL.X-Ray.
5.6 years export experience

Welcome to Haoxi!

Our PCB board manufacture and PCB Assembly service

* PCB board file with parts list provided by customers

* PCB board made, circuit board parts purchased by us

* PCB board with parts assembled

* Electronic testing circuit board or PCBA

* Fast delivery, anti-static package

* RoHS Directive-compliant, lead-free

* One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery

Technical Specification For PCB

Number of Layer	1,2,4 or 6,upto 18 layer
Order Quantity	1 to 50,000
Board Shape	Retangular,round,slots,cutouts,complex,irregular
Board Type	Rigid, Flexible, Rigid-flexible
Board Material	FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc.
Board Cutting	Shear,V-score,Tab-routed
Board Thickness	0.2-4.0mm, Flex 0.01-0.25mm
Copper Weight	1.0, 1.5, 2.0 oz
Solder Mask	Double-sided green LPI,Also support Red,White,Yellow,Blue,Black
Silk Screen	Double-sided or single-sided in white,yellow,black,or negative
Silk Screen Min Line Width	0.006'' or 0.15mm
Max Board Dimensions	20 inch20inch or 500mm500mm
Min Trace/Gap	0.10mm, or 4mils
Min Drill Hole Diameter	0.01'',0.25mm, or 10mils
Surface Finish	HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc.
Board Thickness Tolerance	±10%
Copper Weight Tolerance	± 0.25 oz
Minimal Slot Width	0.12'', 3.0mm, or 120mils
V-Score Depth	20-25% of board thickness
Design File Formate	Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG
