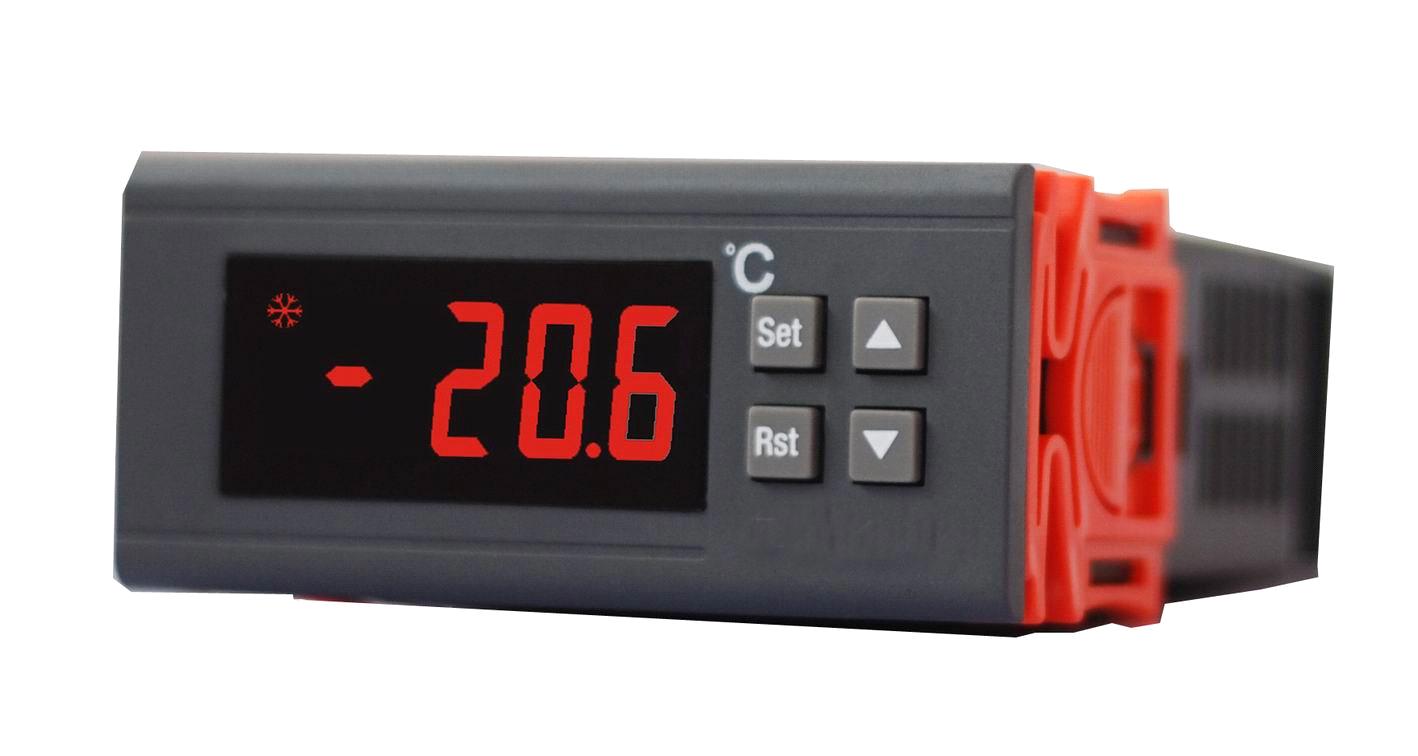

Ultra-temperature Controller RC-420M (platinum resistor temperature sensor)
| Supply Ability: | 20,000 Piece/Pieces per Month |
|---|---|
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Specifications
RC-420M
Ultra-temperature complex-compressor controller (2 platinum resistors temperature sensor)
Technical parameters:
Temperature controlling range: -99~100 ºC
Resolution: 0.1 ºC
Accuracy: ±1 ºC
Power supply: 220VAC±10%
Consumption: ≤3W
Low and high temp. compressor relay capacity: 10A
Defrost relay capacity: 5A
Operating temperature: -10~60 ºC
Operating humidity: 20%~85%
RC-420M is specially designed for ultra-temperature equipments such as ultra-temperature refrigerator and ultra-temperature storage refrigeratory. It adopts platinum resistor temp. sensor and Teflon wire, accurate and stable performance.
RC-420M is specially designed for ultra-temperature equipments such as ultra-temperature refrigerator and ultra-temperature storage refrigeratory. It adopts platinum resistor temp. sensor and Teflon wire, accurate and stable performance.
|
Code
|
Function
|
Setting range
|
Default
|
Unit
|
|
F01
|
Temp. setting
|
F10~F11
|
-45
|
ºC
|
|
F02
|
Temp. controlling differential
|
0~15
|
6
|
ºC
|
|
F03
|
Shutdown temp.
|
0~9
|
4
|
ºC
|
|
F04
|
Compressor delay
|
0~9
|
2
|
Min
|
|
F05
|
Defrost cycle
|
0~99
|
12
|
HR
|
|
F06
|
Defrost time
|
0~99
|
25
|
Min
|
|
F07
|
Defrost duration
|
0~9
|
3
|
Min
|
|
F08
|
High temp. alarm
|
1~30
|
30
|
ºC
|
|
F09
|
Alarm delay
|
0~99
|
15
|
Min
|
|
F10
|
Setting highest temp. limit
|
F01~100
|
-20
|
ºC
|
|
F11
|
Setting lowest temp. limit
|
-99~F01
|
-80
|
ºC
|
|
F12
|
Temp. calibration
|
-12~12
|
0
|
ºC
|
|
OU
|
Exit menu
|
/
|
/
|
/
|
