Jiangsu Jinsanli Machinery Manufacture Co., Ltd.
China Manufacturer with main products: Hydraulic Iron Worker Q35Y-16, Q35Y-20, Q35Y-30, Q35Y-40 hydraulic ironworker/punch and shears/ press brake/ shearing machine/ steel workers/... |

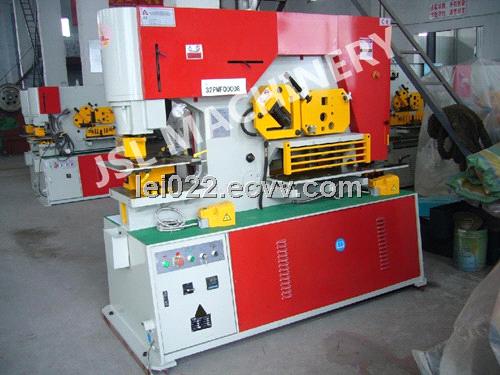

Q35Y-30 steel worker
| FOB Price: | 3,000.00 - 10,000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Year |
| Shipping: | 20 working days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangsu in China |
Specifications
Q35Y-30E is improved machine on the base of standard Q35Y-30.It also go along with 5 set of blades. But the profile shearing and plate shearing work position is automatic. There is automatic holding system in profile shearing and plate shearing work position- the holders will fix the position of workpiece, in this way, the accuracy is better and more safety for workers meanwhile save time and Improve working efficiency. In addition, there is temperature cooling system with machine- Through the temperature monitoring screen you can read the temperature of oil, 55 degree is our default configuration, once the machine is working, oil temperature goes higher than 55, the cooling system inside will run automatically to decrease temperature in order to protect machine. In addition, we have many patents for Ironworker machine and Our Company through the ISO9000, CE certification, SGS certification and CQC. HYDRAULIC IRONWORKER MODEL: Q35Y-30E (IW-140)
| Technical Data | ||||
| NO | Item | Unit | IW-160 | |
| Q35Y-30E | ||||
| 1 | shearing plate | Angle of shear | ° | 8° |
| Max.shearing thickness | mm | 30 | ||
| Flat bar | (W×T) mm | 355×30 | ||
| 600×20 | ||||
| 2 | shearing bar | Round steel | mm | 65 |
| Square bar | mm | 55×55 | ||
| 90°shearing of equal-angle bar | mm | 180×180×16 | ||
| 45°shearing of equal-angle bar | mm | 80×80×10 | ||
| 90°shearing of T-bar | mm | 180×90×16 | ||
| I beam steel | mm | 280×124×10.5 | ||
| channel steel | mm | 280×86×11.5 | ||
| 3 | Thickness | mm | 10 | |
| notching | Width | mm | 90 | |
| Depth | mm | 100 | ||
| 4 | punching hole | Max.punching thickness | mm | 28 |
| Max.diameter of punching | mm | 38 | ||
| Punching force | Ton | 160 | ||
| Depth of throat | mm | 600 | ||
| Max.length of cylinder stroke | mm | 80 | ||
| Stroke times | times/min | 8 | ||
| 5 | Material strength | N/mm2 | ≤450 | |
| 6 | Motor power | KW | 11 | |
| 6 | Overall dimensions (L×W×H) | mm | 2680×1060×2380 | |
| 7 | Net. weight | KG | 6800 | |
