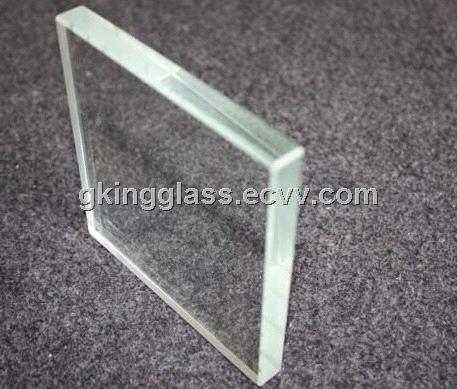

8mm pyrex glass machine work

Inquiry Now

Related products from verified members

Glass Four sides edger (Seaming Machine)

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Specifications

Borofloat glass borofloat glass pyrex glass borocilicate glass3.3
Heat resistant temperature 450-500 °C
Softening point 820 °C

Heat resistant Glass
High transmission Light
Stable chemical property
High Acid Resistant Glass

Specification of Product
1) Dimension 1200mm×600mm 1150×850mm 1150×1700mm
2) Thickness 1.1~20mm
3) Net sized glass of strengthening can be supplied as per the customers requirement;
4) Glass of small cut size is available according the requirement from customers.

Performance of the Product
1). Mechanical Performance    Density ρ 2.23±0.02g/cm3
2). Thermodynamic Performance
      Thermal expansion coefficient    (0-300) 3.3±0.1×10-6K-1    Softening point    820±10
      Strain point                                  516±10                Caloricity (20-100)    0.82KJ × (kg×K)-1
     Thermal coefficient                       1.2W×m×K-1      Thermal shock resistance   180K
    Strengthening type                       300K              Identical temperature difference     100K
    Strengthening type                       300 K

Maximum working temperature    Short time(<10h): 500 Long time(>10h): 450
3). Chemical Performance
    Water resistance          ISO719/DIN12111 HGB1/ISO720 HGA1
      Acid resistance            ISO1776/DIN12116 1 Alkali resistance          ISO695/DIN52322 A2
4). Optical Property
      Refractive index                        Nd: 1.47384      Transmittance spectrum curve

5). Electrical Property
      Specific resistance lgρ             8.0Ω×cm at 250
      Dielectric dissipation fraction tan σ (1 megacycle at 20): 38×10-4
      Dielectric constant                   ε=4.7

Means of Processing for Customers
1.Cutting 2.Round corner 3.Round edge 4.Surface fine polishing 5. Hole drilling 6.Coating
7Surface printing and sand blasting.8. Thermal bending

Borosilicate 3.3 serves as a material of truly functional and wide applications:
1). Household electrical appliance (panel for oven and fireplace, microwave tray etc.);
2). Environmental engineering and chemical engineering (Lining layer of repellence, autoclave of chemical reaction and safety spectacles);
3). Lighting (spotlight and protective glass for jumbo power of floodlight);
4). Power regeneration by solar energy (solar cell base plate);
5). Fine instruments (optical filter);
6). Semi-conductor technology (LCD disc, display glass);
7). Iatrology and bio-engineering;
8). Safety protection (bullet proof glass)
