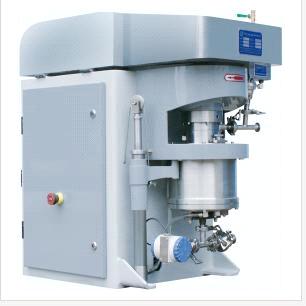

WHD Series High Energy Grinder

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

WHD series high energy grinder

Chracteristic of Grinder:
• High-quality colour filters of TFT screens and LCD displays
• More gloss for automotive paints: high solids and waterbased products
• More resistance for heavy-duty coatings
• More brilliance by nano-grinding of highly light-fast pigments
• More economic efficiency due to increased colour strength in the manufacture of high-quality tinting pastes
• More gloss and transparency for high-quality packaging and foil inks
• More quality for premium inkjet products
• More quality and economic efficiency in the development and manufacture of a wide range of products with high demands in the area of dispersing and true grinding
Application
Automotive paints
Packaging inks
Gravure inks
Heavy duty coatings
Nano grinding of highly light-fast pigments
Ink jet products
Product with high demands in the area of dispersing and true grinding

WHD		4	12	85	200	400
Drive[KW]		2,2	5,5	30	45/55	90/105
Active mill chamber volume [I]		0,275	1,2	9,5	15	32
Grinding media	centrifugally with following	●	●	●	●	●
separation	protective screen	●	●	●	●	●
Flow rate [I/h]	depend.on viscosity,	60	300	1,200	2,500	5,000
	grinding media type and pump, e.g.	60	300	1,200	2,500	5,000
Cooling	outer stator	●	●	●	●	●
	stator bottom	——	●	●	●	●
	inner stator	——	●	●	●	●
	rotor	——	——	——	●	●
Lifting device	hydraulic hand pump	——	●	——	——	——
for grinding vessel	hydraulic foot pump	——	——	●	●	●
	motored hydraulics	——	——	——	——	——
Approx.weight [kg]		150	270	1,608	2,100	3,420
