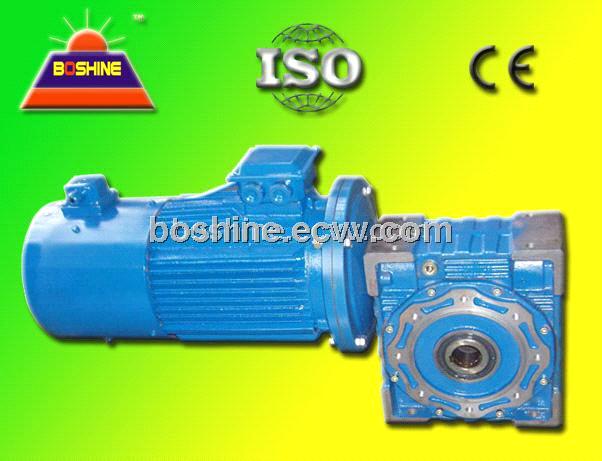

Frequency Inverter Worm Gear Motor

Supply Ability: 1,200 Set/Sets per Month
Shipping: Delivery 5~30 days, Ningbo or Shanghai port.
Payment Terms: L/C, T/T, D/A, D/P, Western Union
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hubei in China
Packaging Details: Inner:plastic film bag and foam,outer:plywood case.

Quick Details

  • Brand Name: BOSHINE
  • Model Number: RV-Y
  • Certification: CCC,CE,ROHS
  • Type: Induction Motor
  • Protect Feature: Drip-proof
  • Output Power: 0.04~7.5KW
  • Voltage(V): 220/380V or others
  • Efficiency: IE 2

Specifications

Frequency Inverter Worm Gear Motor( RV series )

Feature
Drive Motor
Power(P1)
YVF2 Inverter Motor, 0.06Kw~7.5Kw
Voltage Scope(V)
110V~660V or make specially according to clients' requirement.
Phase
Single(under 3Kw) or Three
Pole
2 or 4 or 6 or 8 or 10
Motor Speed(N1)
Relys on motor pole: 600r/min~3000r/min
Frequency
50Hz or 60Hz or 50/60Hz
Insulation Class
B or F
IP
IP54 or IP55 or make specially according to clients' requirement.
Duty
S1
Cooling Type
IC0141(Fan Self-cooling) or Blower
Terminal Box
0o or 90o or 180o or 270o, any position is allowed
Link Wire
Y(P1≤ 3Kw), Δ (P1> 3Kw)
Operation Temperature
Normally: -15℃~ 40℃. If end-user' s special requirement, we' ll make it specially.
Connect Method
IEC motor adapter
Ratio Scope(i)
7.5~100, if client want bigger ratio, please consider combination type
Rated Torque(N. M)
2.6N. M~1074N. M
Output Speed(N2)
Depends on motor pole: N1/ratio(i), N2=1.5r/min~200r/min
Service Factor(Fs)
1.2~2.0
Mount Type
Hollow output shaft
Installation Direction
Horizontal or Vertical is allowed
Installation method, Detailed dimension, Lubrication oil list etc, download pdf file.
