Home  >Products Catalog > proximity switch > proximity sensor TRC12-4DN with connector quality guaranteed

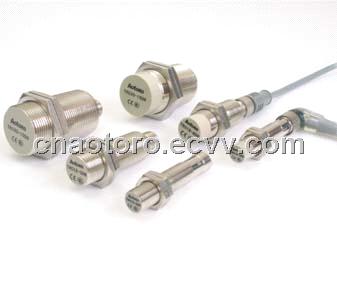

proximity sensor TRC12-4DN with connector quality guaranteed

FOB Price: 4.10 - 5.90 USD/Piece
Supply Ability: 1,000 Piece/Pieces per Day
Shipping: according the order
Payment Terms: T/T, Paypal, Western Union
In Stock
  • ECVV Safebuy Services

    According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>

  • Safebuy Service Guarantee

    Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.


Related products from verified members

Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Zhejiang in China
Packaging Details: ONE PCS OF ONE BOX

Specifications


 proximity sensor
proximity switch,proximity sensor, proximity switch sensor,sensor,switch,approach switch, inductive. short circuit protectionDCtype,long endurance and high reliability.




Model

NPN 3-wire
PNP 3-wire
DC 2-wire
AC 2-wire
NO
TRC12-2DN
TRC12-2DP
TRC12-2DO
TRC12-2AO
TRC12-4DN
TRC12-4DP
TRC12-4DO
TRC12-4AO
NC
TRC12-2DN2
TRC12-2DP2
TRC12-2DC
TRC12-2AC
TRC12-4DN2
TRC12-4DP2
TRC12-4DC
TRC12-4AC
Detecting distance
2mm-4MM
Standard Detecting target
lron 12*12*1mm
Power supply
10-30VDC
12-30VDC
90-250VDC
Current consumption
Max:12mA
Max:0.9mA
Max:2.2mA
Response frequency
300HZ
20HZ
Residual voltage
Max:1.5V
Max:6V
Max:10V
Control output
Max200mA
Max100mA
Max200mA
Protection circuit
Reverse polarity protection,Surge absorber,Short circuit protection.
Insulation resistance
Min:50MΩ
Dielectric strength
1500VAC 50/60HZ
Material
Case:brass,Detecting surface:ABS
Operating temperature
20to+70,non-freezing condition
Ambient humidity
35to95%RH
Protection
IP67

Aotoro products:
Index: passed the CCC, CE certification, all the technical indexes reach achieve national standard (GB/T14048.10-1999),
Technology: adopting new special IC, adopt the most complete technical design, with various protection circuit, anti-jamming measures, more stable performance.
by SMD production technology, product reliability and consistency.
Management: passed ISO9001 certification, all processes of production links is strict accordance with the standardization documents, never let any nonconforming into the market.
