Home >Products Catalog > GPS TRACKR > GSM+SMS cheap motor tracker using SIM card(RA05)

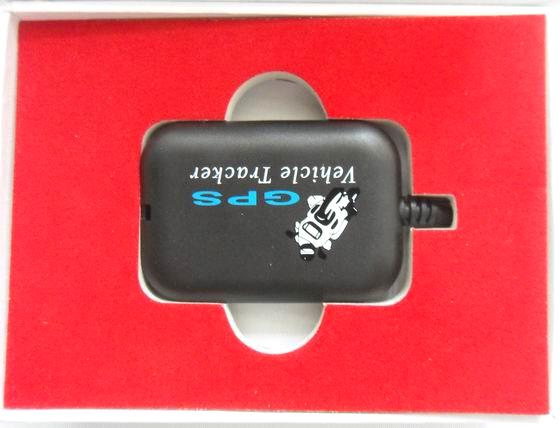

GSM+SMS cheap motor tracker using SIM card(RA05)

FOB Price:	10.00 - 20.00 USD/Set
Supply Ability:	10,000 Set/Sets per Month
Shipping:	WITHIN 3~7 DAYS AFTER RECEIVING YOUR PAYMENTS
Payment Terms:	L/C, T/T, Paypal, Western Union

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

2-in-1 unlock + sim dialer

Price:3.00-5.00 USD/Piece

Min. Order:10 Pieces
Supreme Unlock SIM Card

Price:

Min. Order:50 Pieces
4GS WIFI Dual Sim Card Dual Camera Quad Band WI...

Price:10.00-105.00 USD/Piece

Min. Order:1 Piece
Calling Card

Price:

Min. Order:5000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China

Specifications

Detailed Product Description
1.GSM four frequency system global general;
2.built-in switching power supply, exceed wide voltage input range: 9-36 VDC;
Features & specification:

1.Set alarm way:Editor the message : #720#(0-3)#0000## to SIM card of the device. (0 is not alarm, 1 dial-up alarm, 2 text messages, 3 dial-up + SMS warning alarm)
2.Mobile phone alarm: Binding master number, sent message: # # 711 number # 0000 # 1 # # (number immediately give priority to hand), each device can be set up nine number, from 1 to 9 order set mobile phone binding number.
3.Electronic fence: Send text messages: 681 + password (default: 0000) to equipment SIM card to open.
4.Cancel fence: Send text messages:6800000 to equipment SIM card to cancel.
5.Query: Position,Editor the message :8880000 to the locator,system will reply locator current position with SMS. Editor the message : 6660000 to the locator,system will reply locator current position with SMS,Mobile phone direct track online.
6.tamper alarm: The electric power lost will give host phone call.
7.Vibration alarm: 6830000 is open, the 6840000 is shut down vibrations. Vehicle vibration, will automatically send a message to binding number.
8.online query:website: m.gps588.com (the user name is a 15 IMEI
number in each device.the number is unique, account is last 8 IMEI number, password is 123456)
9.Set APN command:# 802 # APN# user name #password # last 4 password## (Example::#802#APN#000000#0000##)
10.Set server address command: #134# server address or domain name # port number # password ##( Example:#134#m.gps588.com#8469#0000##)

Matters needing attention:
1 Motor is usually 48V, in high speed running, up to 80V, equipment easy to burn, So when in installation must pick one to two blocks to the anode and cathode, can be safe to use.Because each battery is 12V, two battery series is 24V so we controllable voltage should not exceed 58V.
2 If not installed correctly, causing the device to burn at your peril.

Special statement:
1.the product have technology to change without prior notice
2.Product appearance and color is subject to change, in kind prevail.
3.Warranty card is only applicable to the IMEI number listed machines.
4.Please keep the card, show this card and the original purchase documents when guarantee.
5The specific scope under warranty please see table explanation.
