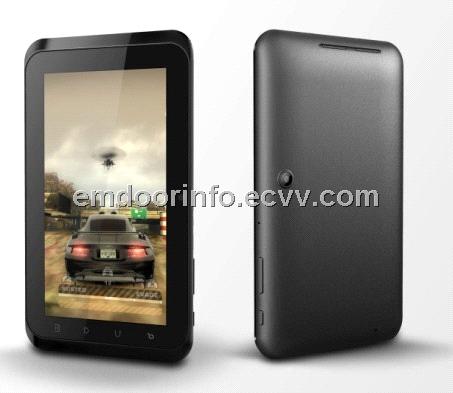

7" Tablet PC

Price:

Min. Order:50 Pieces

Product Details

Export Markets:	North America, Eastern Europe, Oceania, Western Europe

Specifications

Main function:

Amologic Cortex A9, single core and dual core optional.
GPU dual Mali-400
RAM 1GB DDR3
Storage 8GB Standard ( Max 32GB)

7" 5 point Multi-Touch Capacitive
IPS 1024*600
Android 4.0.3 system.

With full features but optional:
3G built-in: WCDMA/EVDO/HSDPA, support calling.
Bluetooth 4.0
GPS built-in
Wi-Fi 802.11 b/g/n
SD Support High-Speed 32GB

Camera Front 0.3MP / Rear 2MP (5M optional)
I/O Ports "        1 x Mic in
        1 x Headphone out
        1 x HDMI
        1 x Micro USB (OTG)
        1 x DC-in
        1 x TF Card Slot
        1 X SIM Card Port"

Battery 4100mAh, 4~8Hours
Dimensions 198*117*12.8mm
Weight 385g
Power Adapter 5V 2.5A

Z-Wave Module:
ZW0301, 32k Flash 2k SRAM
RF frequency: 868.42MHz/908.42MHz
Distance: >30M
Z-Wave and MID data exchange via the serial port, and JAVA layer API interface
Interrupt wake-up function
Retain the external Debug Interface
MID can use software update Z-wave modules
Internal antenna, FPCB type

Other Modules optional:
Zigbee Function: TI CC2530 Chipset
Z-Wave Function: 　ZW0301 Chipset
NFC Function: Support 14443/15693/Mifare/Sony Felia
HF RFID 13.56M Function: Support 14443A/15693
UHF RFID Function: 　Support18000 6C
LF 125K RFID support EM400X,EM4050,EM4150,EM4070,EM4170
