Glazed Tile Roll Forming Machine

Specifications

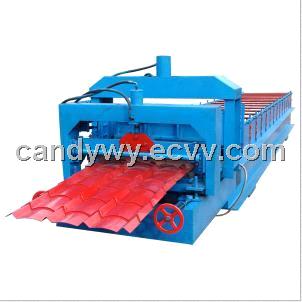

KXD30-250-750 Glazed Tile Roll Forming Machine

The antique glazed tile has nice appearance, primitive simplicity and elegant modeling, etc. by rolling into the stamping forming. It can be used in buildings and outdoor decoration such as garden-type factories, scenic spots, pavilions, hotel villas, exhibition halls, resorts, among others.

30-250-735 Custom Made Tile Roll Forming Machine

Main parameters:

1. Dimension of Decoiler: 860mm*1450mm*1124mm (length*width*height)

2. Productivity: 1-6m/min

3. Thickness of Steel: 0.4-0.6mm

4. Width of Raw Material: 914mm

5. Effective Width: 735mm, tolerance ±1/100

6. Wave Height: 30mm, tolerance 28-0.3

7. Roller Steps: 14

8. Dimension of the Machine: 8268mm*1486mm*1550mm

9. Dimension of Pressing Machine: 477mm*1380mm*837mm

10. Main Motor Power: 4KW

11. Roller Material: 45#steel by CNC-machining heat treatment and buffing, thickness of plated chromium: 0.05mm

12. Diameter of Shaft: 72mm

13. Cycloid Reducer: BWD22-71-3.0KW

14. Hydraulic Pump: 4 kw

     Imported inverter

15. Computer: Imported PLC

     Computer operated screen

16. The whole machine includes main roll forming machine, hydraulic oil pump, decoiler, hydraulic cutter, computer control system, and runout table.
