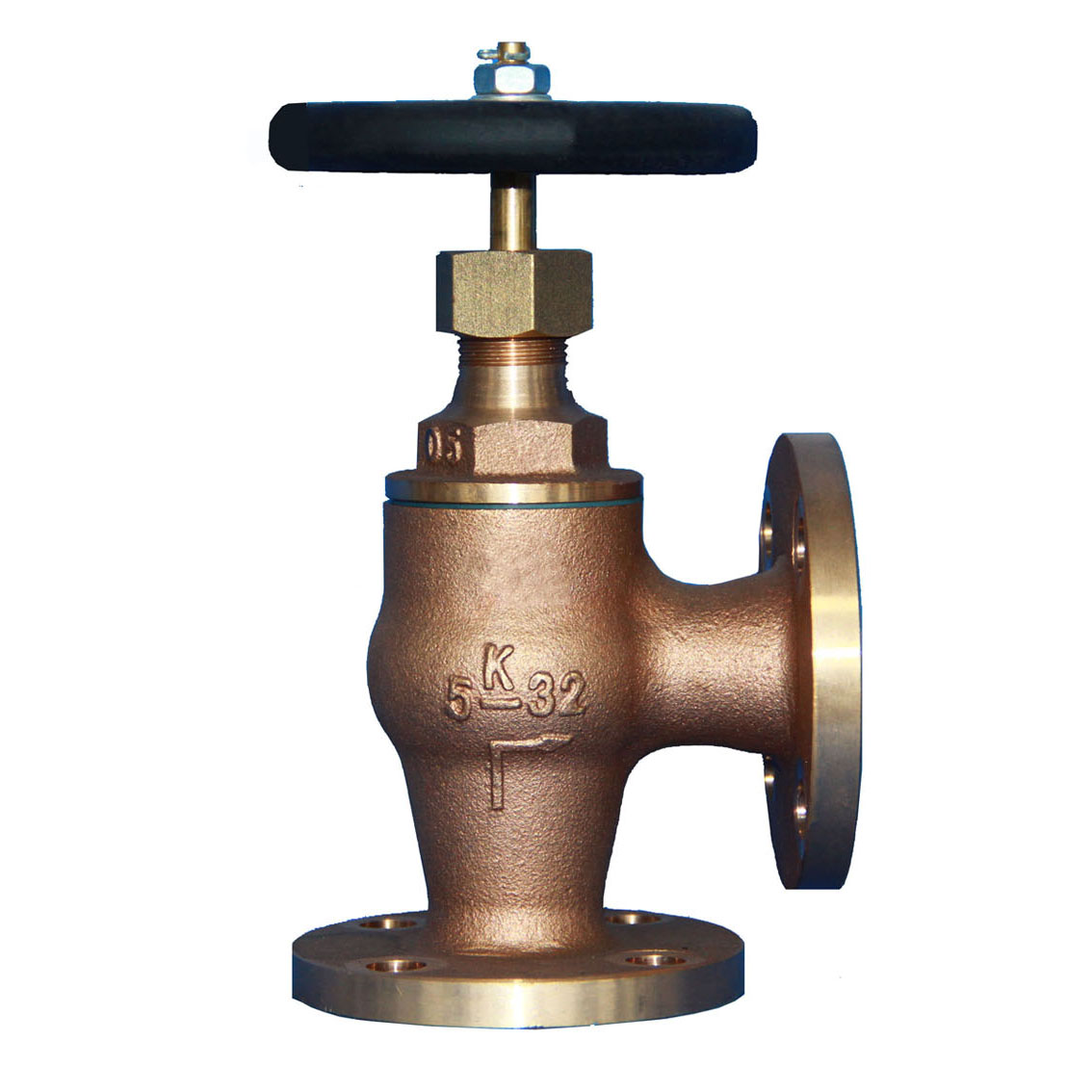

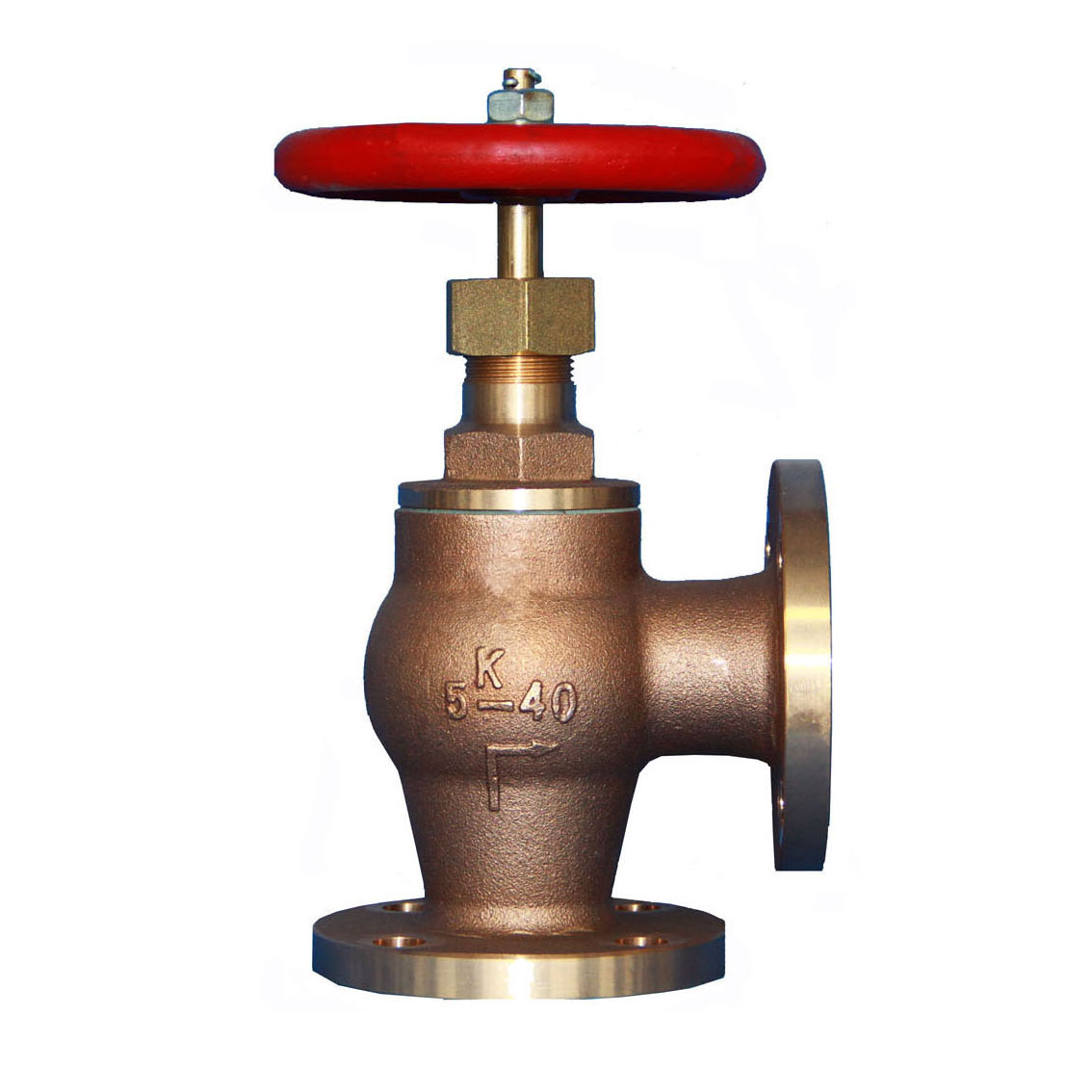

JIS Marine Valve - Bronze or Brass Screw-Down Check Angle Valve, Non-Return Valve

FOB Price:	1.00 - 2.00 USD/Piece
Supply Ability:	5,000 Piece(s) per Month
Shipping:	30days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	3-plywooden packing

Quick Details

Brand Name: VG or customer required
Temperature of Media: Medium Temperature
Material: Brass
Pressure: Medium Pressure
Standard or Nonstandard: Standard
Model Number: F7352 F7410
Port Size: 15-65
Media: Water
Power: Manual
Structure: Stop

Specifications

1)F7352-Marine Bronze 5K Screw-down Check Angle valve

Nominal pressure; 5K(0.49Mpa)

DN 15, 20, 25, 32, 40, 50, 65

2)F7410-Marine Bronze 16K Screw-down Check Angle valve

Nominal pressure; 16K(1.56Mpa)

DN 15, 20, 25, 32, 40

1. End Type; Flange

2.Angle Type

3. Main material;

Body/Bonnet/Disc;BC6; or brass

Stem; Brass C3771BD;

Gasket; Non-asbestos;

Hand-wheel; FC200

4.Application;Sea water piping, fresh water piping, oil piping and steam piping.

5.Function:High flow, Zero leakage check globe valves are used for on-off duty and regulating the flow into one direction.
