Thermoplastic Profiled Pavement Marking Material

FOB Price: 700.00 - 731.00 USD/Ton
Supply Ability: 1,000 Ton(s) per Month
Shipping: Tianjin Port
Payment Terms: L/C, T/T, Western Union
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Shanxi in China
Packaging Details: 25kg/nylon plastic bag

Quick Details

  • Brand Name: Shanxi Jiuda
  • State: Powder Coating
  • Application Method: Profiled Application
  • Usage: Road Marking Paint
  • Main Raw Material: C5 petroleum resin
  • Model Number: ---
  • EINECS No.: ---
  • MF: ---
  • Other Names: thermoplastic vibration road marking
  • CAS No.: ---
  • Curing time:
  • Compression strength: >/=12(23degree Celsius)
  • Anti slide swing valve: >/=45BPN
  • Color: White/Yellow/Customize color

Specifications


Thermoplastic Profiled Pavement Marking Material
Advantage:

*  Excellent compression resistance;

*  Safety warning effect (the protuberance portion can produce the reflected light so that it can provide an audible warning on high speed roads,a proven safety measure to inform motorists and pedestrians or serve as noise generators when run across a road,or attempt to wake a sleeping driver when installed in the shoulder of a road)

Consumption (Actual consumption depends on the roughness of pavement)

Reference Table of Material Consumption



Thermoplastic profiled

Paint

6kg/

Glass Beads

350g/

Technical Data:

Curing time:3minutes

Compression strength:12(23)

Anti slide swing valve:45BPN

Color:White/Yellow/Customize color



Typical installation areas:

High grade highway boundary line,corner,diversion area,entrance marking,bridge,tunnel,steep slope and other sections.

City road junction parking line,lane boundary,special lane demarcation marking..

Other places that must have a hint function marking..



the matters needing to attention during the construction

1. the road surface should be dry during construction and keep the road clean.

2. during the construction,the temperature should not be below 15,if the road surface is

Humidity construction is forbidden.

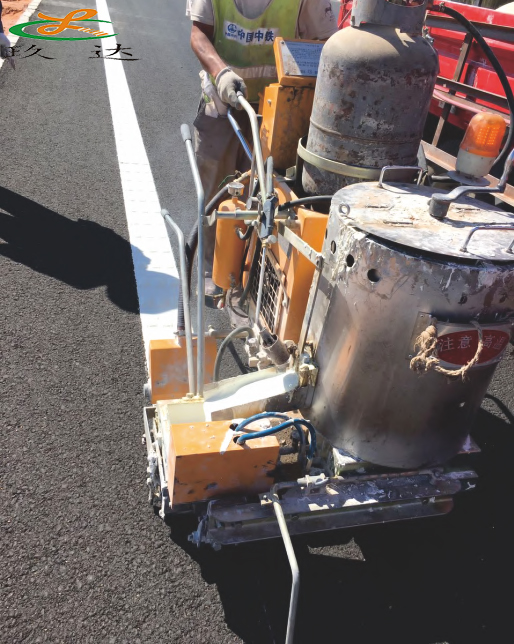

3. When the paint is heated in the hot melt kettle,the temperature should be controlled at 180

to 220,at the same time fully mixing.

4.  after the primer completely dry,then to apply the paint.
