Widespread Metal Detection DoorMCD-200

Inquiry Now Start Order

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

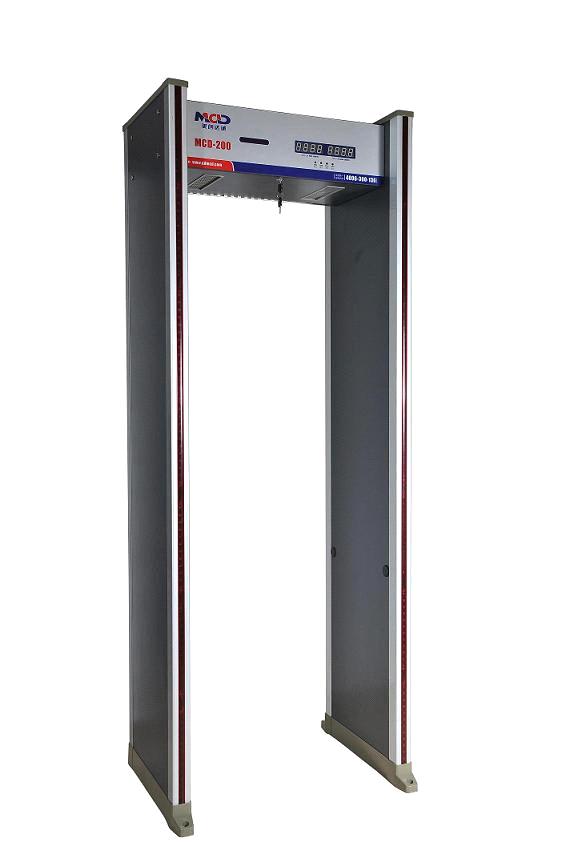

MCD-200 Practical & Widespread Metal Detection Door

Features:

1. Six interlaced detection regions of the same high with the body and combining,

2. LED alarm light on column, displaying the area of metal detected accurately

3. Four pairs of infrared emission and the receiver to prevent detection blind spot

4. 100% Ferrous & non-ferrous metal detect

5. With aluminum alloy binding tape, up to 99% non-condensing

6. Using microprocessor digital control technology, anti-interference ability,

7. Each region has 100 adjustable sensitivity, in accordance with the requirements in the 0-99 arbitrary regulation, and gets rid of the interference of belt, zippers and other objects.

8. Pass-through number and the alarm frequency can be counted automatically

9. Can be used independently, or several detection doors net work (minimum spacing of up to 40CM)to meet the flow requirements of pass through

10. Password protection function: to prevent non-authorized personnel to amend the parameters.

11. Assembled structure: easy installation. User-friendly diagnostics identify fault condition,

12. Standard: "GB 15210-1994. Through-type metal detector door general technical conditions" national standards Basic safety: meeting the requirements of GB4793.and program to be store in non-volatile memory; Comply with IP20(60529) ;Personal safety: Satisfied NILECJ-0601.

13. EMC electromagnetic radiation in line with the standards: comply EN60950,no harm to the wearers of heart pacemakers, pregnant women, film and magnetic recording materials.

Specification:

1. Power supply: AC220V/50Hz or AC110V/60Hz

2. Back up battery: 4hours or 8 hours according requirement

3. Power consumption: less 35W

4. Operation temperature:-20 ℃ to 55 ℃

5. Weight: about 80kg

6. Through rate: more than 60 million / per minute.

7. Tunnel size: 2010*700*560mm

8. Dimension: 2230*810*560mm

9. Package size: 2280*665**220mm(Main body)

780*480*290mm(Host processor)
