Home >Products Catalog > 45T horizontal directional drilling, 195kw cummins engine

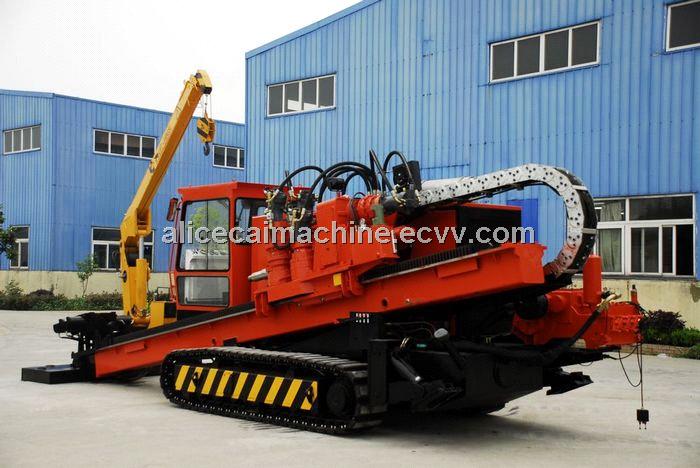

45T horizontal directional drilling, 195kw cummins engine

Inquiry Now

Related products from verified members

Brand New 22111-03500 Cylinder Head G4LC for Hy...

Price:180.00-200.00 USD/Piece

Min. Order:2 Pieces
Valve stem seal for Cummin QSM11 Diesel Engine

Price:1.00-100.00 USD/Piece

Min. Order:100 Pieces
Throttle Boday (036133062B, 036133062N)

Price:40.00-100.00 USD/Piece

Min. Order:100 Pieces
Rotor Head 1 468 334 604

Price:1.00-2.00 USD/Piece

Min. Order:1 Piece

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

Main Technique Parameters:

Rig Weight: 14000Kg	Size (L×W×H mm): 9770×2300×2710
Max. Push & Pull Force: 447KN	Max. Torque: 20712N·m
Max. Rotary Speed: 36m/min	Max. Rotary Speed: 107r/min
Max. Mud Flow: 450L/min	Max. Mud Pressure: 10Mpa
Diameter of Expanding Aperture: 1300mm(ground condition depended)	Max. Work Distance: 600m (ground condition depended)
Drill Entry Angle: 12-22°	Max. Climbing Gradient: 18°

Main PerformanceCharacteristics:

1,The rotary and push and pull adopts closed-circuit, which can low down the temperature and reduce the near. Other assistant mechanical adopts open circuit driven by high pressure gear pump.

2,The Girder adopts four-connecting rod to increasing the range of the entry angle. Meanwhile, it makes sure of

the caterpillar landed on the ground when rig in big angle, which improves the safety;

3,Balance of the clamp makes sure of the concentricity and protection of the rod thread;

4,Cabin can automatically move up and rotate, which improves the view;

5,Transfer case made in German improves the Rotary and Push & Pull Speed;

6,The arrangements of oil pipes are reasonable and clear, the structure of the chassis is enhanced;

7,Safe wire -controlled walking system;

8,The floatable of the main axle can protect the rod thread and reduce the stress;

9,Comparing to the traditional hydraulic system, the advanced hydraulic system improve15-20% of the work efficiency, reduces 50% heat lost and saves 15-20% energy;

10,Cooling system is equipped on the power head, which can protect the speed reducers and motors.

11,Unique design of the mechanical hand reduce the workforce and improve the work efficiency.

Product advantage: high-end, imported pump, transfer case, reducer etc. with great power, high-quality configuration, fast push-pull speed, good performance compared with other manufacturers in China.

Our model: YQ220-L, YQ370A-L, YQ370B-L, YQ450-L, YQ700/1050-L, YQ1100-L, YQ1500-L, YQ2000-L, YQ3000-L, YQ5000-LL, YQ6000-LL, YQ8000-LL, YQ10000-LL.

Exhibition:

1. Zhengzhou trenchless fair in April, we showed our 300T (YQ3000-L) rig, which is the best drilling rig compared with the similar capacity rigs in China, and enjoys good reputation both at home and abroad.

2. Shanghai no-dig exhibition in August, we showed our 800ton rig, which is the biggest and most advanced rig in China. The chief engineer from Vermeer company showed great interest in our 800ton rig, technicians from other companys also came to see our rig from time to time.

We look forward to the opportunity to work together for our better future.
