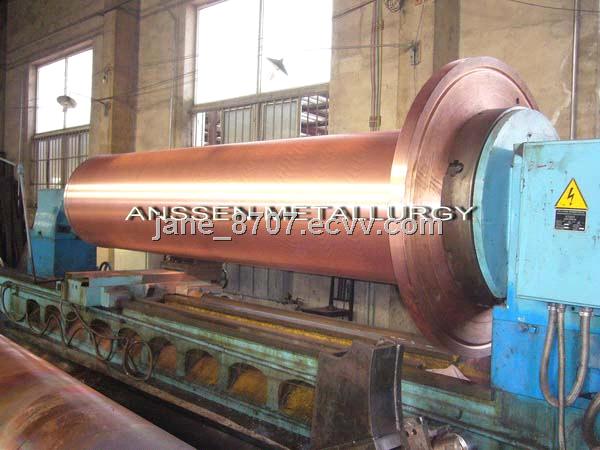

Crystallizer for ESR

Purpose:
-Electroslag remelting utilize resistance as heat source to be a measure of smelting,
which produced when current go through electroslag. The main purpose is to purifty
metals, and gain well-distributed and dense crystal structure of ingot.

Characteristic:
- Copper tube adopt forged seamless copper tube or coiling weld copper plate.
- Flange adopts CuCrZr alloy which has high thermal conductivity and thermostability.
- The safe and reliable welding technology can adapt to high-strength and high
temperature working condition.

Technical parameters:
- Chemical composition: Cu≥99.93%
- Welding line flaw detection standard corresponds to GB3323-87Ⅰ-Ⅱ
- Presure test:

Hydraulic pressure: 1.5MP a
Pressurize: 30mins
No leakage phenomenon

- Electric conductivity: σ≥94%IACS

Range of products:
- Forging seamless straight pipe and taper pipe
- Forging area flange straight pipe and taper
- Forging straight pipe and taper pipe to weld flange
- Coiling copper plate to weld straight pipe and taper pipe

Crystallizer specification (Special design of ESR)
General specifications

NO.	Tonnage of mold	Specification (upper/lower inside diameter×High)
1	1 MT	Φ340/Φ380×1600
2	1.5 MT	Φ430/Φ470×1500
3	2 MT	Φ480/Φ520×1600
4	3 MT	Φ580/Φ620×1600
5	5 MT	Φ680/Φ720×1800
6	7.5 MT	Φ780/Φ820×2000
7	10 MT	Φ860/Φ900×2200
8	15 MT	Φ1040/Φ1100×2200
