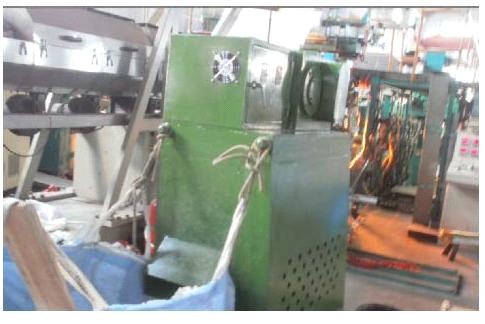

PE Sheet Granule & Recycle Machine

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

1. Functional characteristics:

This machine is specially equipped for the Aluminum Plastic Composite Line. During the production of Aluminum Composite Panel, this machine can draw the PE sheet automaticly after extruder, and crush it into granule which can be recycled by the on-line extruder directly.

2. Unique Advantage:

2.1. The speed of this machine can be adjusted via frequency conversion system, it’s easy to reach the same speed of the Composite Line.

2.2. We have 10-year experience on designing & manufacturing the ACP production line, meanwhile this machine has been already successfully used in many ACP factory.

2.3. It can make the recycling be simple and can let the investment be min cost.

1 Comparing with the traditional crusher, this machine is lower-noise, lower-dust & environmental friendly.

2 Application

3.1. Thickness of PE sheet: 1.5 ~ 6mm

3.2. Width of recycling part (W): less than 500mm

1 Recycling temperature of PE sheet : less than 45 ℃

2 Specification of equipment

3 Size of Crushed Grains

	Granule & Recycle On-line		Granule & Recycle Seperately
With of Recycling Part (mm)	90mm	125mm	500mms
Working Speed (m/min)	3~6	4~7	15~20
Total Power(KW)	4.5	5.2	8.5
Recyckling	Recycling PE sheets on line		Recycling PE sheets or PE rolls
Material of Crushing knife	Cr12

It can be 8~10mm X 4~10mm. According to buyer’s request.

6. Technological Process:

Three-Roller PE Milling Machine Æ Cutting machine for wasted PE sheet

Slitting Cross-cutting Crushed into granule Recycling into the Extruder on line

7. Standard Capacity:

If the Composite Line Speed is 4m/min, PE sheet is 3mm, With of Recycling Part is 75mm. The Output of per hour is about 297kgs
