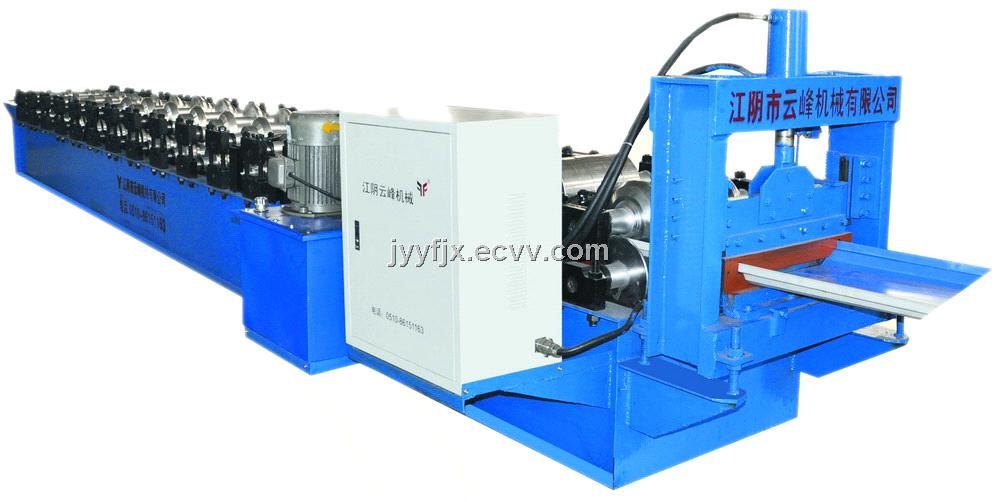

470 roll forming machine

Payment Terms:	L/C, T/T

Inquiry Now

Export Markets:	South America, Southeast Asia, Africa, Mid East
Place of Origin:	Jiangsu in China

Specifications

Effictive width: 470 mm

Expansion width: 550 mm

Weight:3.6 T

Main technical parameter

Unpowered feeding unit: passive feeding, manual up tight

Weight capacity of decoiler 5T

Main motor power: 5.5 kw

Hydraulic motor power: 4 kw

Quantity of roll stand: 17

Shaft diameter of roller: Φ70 mm

Hydraulic oil pump: gear wheel pump

Material of blade: Cr12

Thickness of coil sheet: 0.4~0.8mm

Forming speed: 8-12 m/min

Material of roller: high grade 45# steel ,plated hard chrome on the surface

Computer adopt PLC control: Delta

Frequency converter: Delta

Equipment

Manual decoiler, main roll forming machine, hydraulic cutting device,hydraulic station, PLC computer control, electric locking machine

Technical process

Manual decoiler—feed with guide—roll forming—cut with fixed length—output with table
