Specifications
Liaoyuan LED Street light feature:
Ⅰ.Eutectic Solder ultra light rate high power LED replaces traditional source, green environmental protection, energy saving efficiency, unique eutectic solder encapsulation technology patent technology, ensuring low thermal resistance(LED thermal resistance 5°C/W),long life span and high reliability.
Ⅱ.Rectangular flare patent technology ,achieve high intensity of illumination, high evennes,eliminate glare, a bat wings light distribution curve shape, rectangular flare diminishing light, that pavement evenness reach to 0.7,substantially higher than the standards prescribed by the state 0.4
Ⅲ.Ventilation type, uniform cooling shell design ,long life span, maintain easily, original ventilation type, uniform cooling structure, optimization cooling system design, can control LED junction temperature within 60 digress strictly, ensure lifespan over 50000hrs.
Ⅳ.High efficiency in light utilization, perfect performance in fixture working;
Ⅴ.High efficiency in power supply;
Ⅵ.Perfect performance for vision;
Ⅶ.Great luminous flux maintenance factor
Ⅷ.The reflector's design is made by ourselves and controls the best light distribution.
TYPICAL APPLICATIONS:
Highway | Main Street | Normal Road | Laneway | Park | Garden | Parking Area

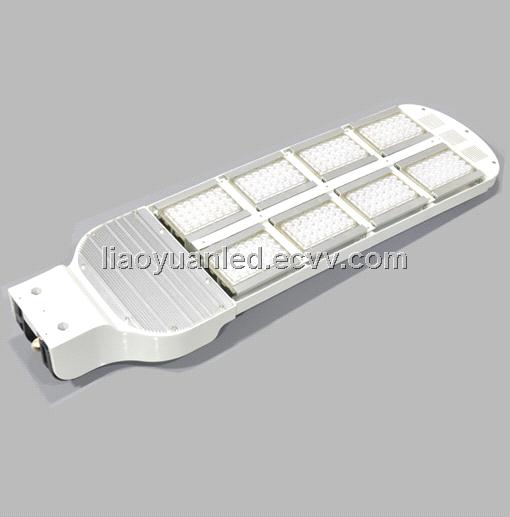

180W led street light parameter
|
Catalog
|
LED-Street light-180W
|
|
|
Item No.
|
LY-LD6A-180 M
|
LY-LD6A-180 W
|
|
Voltage
|
AC 100 ～ 240 V
|
|
|
Frequency of operation
|
50 ~ 60 Hz
|
|
|
Power
|
180W
|
|
|
Luminous flux
|
17640lm/168 pcs 1W high power
|
|
|
Luminous efficiency
|
＞98lm/W
|
|
|
Power factor
|
0.92～0.99
|
|
|
Power supply efficiency
|
＞92%
|
|
|
lamp efficiency
|
＞90%
|
|
|
Installing height
|
10m～12m
|
|
|
Color rendering index(CRI)
|
≥75
|
|
|
Color temperature(CCT)
|
3000-3500K
|
5000-6000K
|
|
view angle
|
120°: lateral axis 120°, direct-axis 60°;
140°: lateral axis140°, direct-axis 60° |
|
|
amp Body Temperature
|
Lamp Body Temperature: ≤55℃
|
|
|
IP class
|
IP 65
|
|
|
Life span
|
＞50000 Hrs
|
|
|
Lamp dimension
|
890(L)*316(W)*75(H)mm
|
|
|
Net Weight
|
10.2 Kg
|
|
|
Working environment
|
﹣40℃～60℃ RH 10%～95%
|
|
|
Operating temperature
|
﹣30℃ ~ 50℃
|
|
|
Storage
|
10℃ ~ 85℃
|
|
