Home >Products Catalog > Other Specialized Testing Machines > Steel Bar/Steel Tube/Steel Sheet Bending Testing Machine/Bender Tester/Material Testing Machine

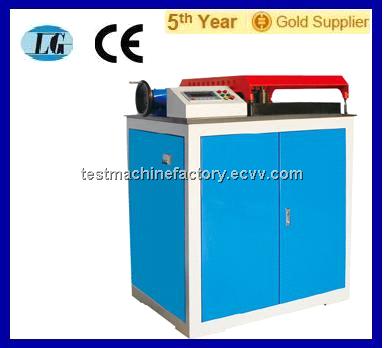

Steel Bar/Steel Tube/Steel Sheet Bending Testing Machine/Bender Tester/Material Testing Machine

Supply Ability:	50 Set/Sets per Month
Shipping:	in store
Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

304 Stainless Steel Soil Sampler

Price:1.00 USD/Piece

Min. Order:1 Piece
Digital LCD PC Computer PC Power Supply Tester ...

Price:12.00-17.00 USD/Piece

Min. Order:50 Pieces
Nozzle Tester Pj-40

Price:1.00 USD/Piece

Min. Order:1 Piece
JWZQ-Type Diving Hydraulic Valve Test Bench, Va...

Price:10000.00 USD/Set

Min. Order:1 Set
Capacitance Tester

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Standard Export Package

Quick Details

Brand Name: Liangong

Specifications

Steel Bar Bending Testing Machine Series

Usage and Characteristics

GW Type Steel Bar Bending Testing Machines are special equipment which process cold bend tests and plane rebend tests. Its Main technical parameters meet GB1499-2-2007 (The second part of steel tube for the reinforcement of concrete:hot rolled ribbed steel bars), YB/T5126-2003 (Program of steel bars plane rebend tests) and satisfy the stipulation and requirement of ISO10065:1900 about cold bend tests and plane rebend tests. It is the ideal testing equipment which is used for testing bend or rebend performance of steel bars for steel industries and building units.

Main Technical Parameters

Type	GW-40B	GW-50B
Range of diameter of steel bars (Three-level ribbed bars)	Φ6-Φ40mm	Φ6-Φ50mm
Angle of bend	0-180°(Arbitrary set)	0-180°(Arbitrary set)
Angle or rebend	0-180°(Arbitrary set)	0-180°(Arbitrary set)
Rotational speed of worktable	≤1.4r/min
Distance of roller center	165mm	245mm
Diameter of worktable	Φ580mm	Φ860mm
Dimensions (LxWxH)	1000x750x1200mm	1320x1185x1380mm
Weight	750Kg	2000Kg
Power	380V 50Hz 1.5Kw	380V 50Hz 3Kw

Advantages

GW-40B (50B) type is the substitute of GB2/25 type and GW-2/40 type. It adopts PLC control ahd has high-precision control. This machine can substitute two machines through changing different spare parts. It has lots of advantages like complete functions, high quality, tight structure and small size, easy to operate and handle, 36V safety voltage control, direct digital display of bend angle, steady running, long service life, more reasonable design of limit position and easily damaged parts, easy maintenance and lubrication and so on.

We also can match appropriate affix for steel bar bending detection according to customer request.
