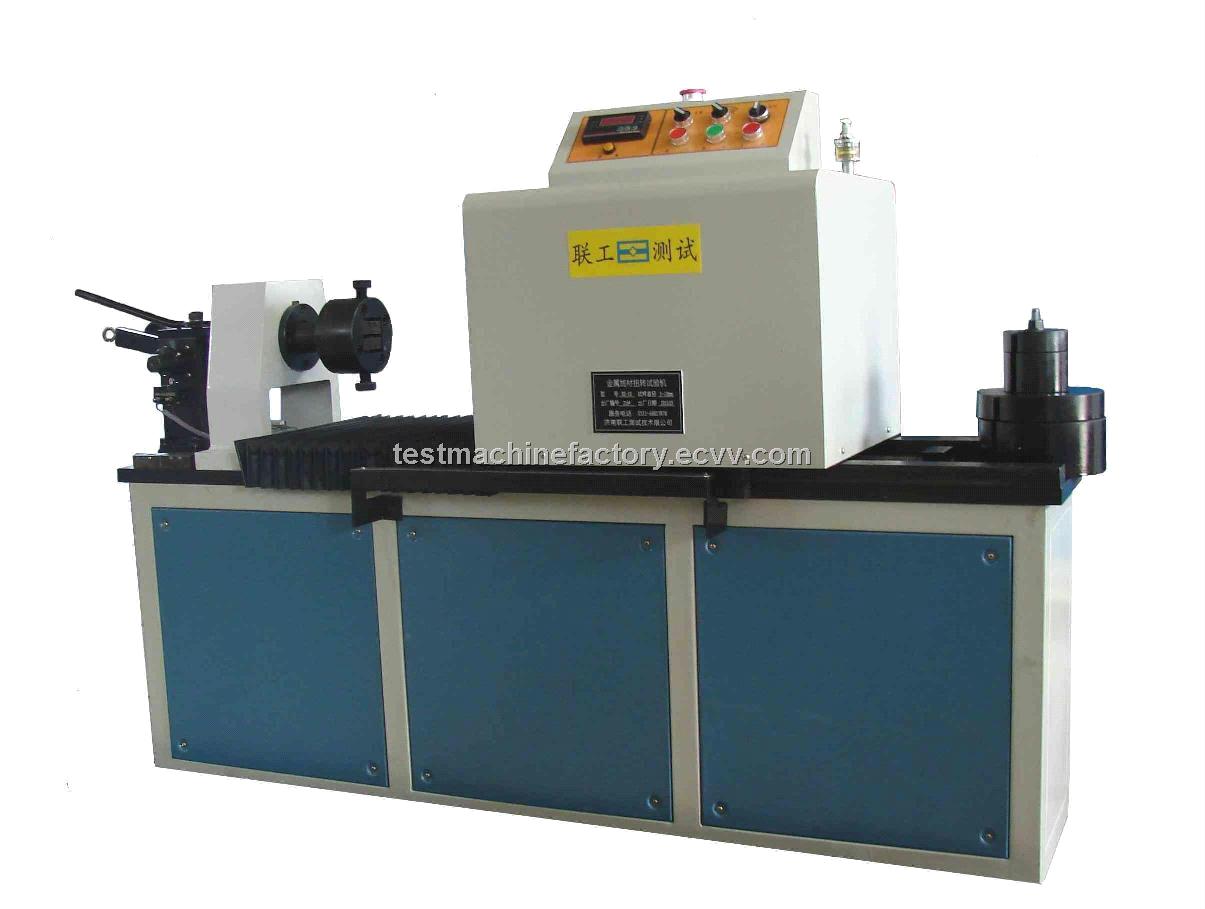

EZ-10 Metal Wire Torsional Testing Machine

Usage and Characteristics

EZ-10 Metal Wire Torsional Testing Machine is a new digital display count wire torsional testing machine that our factory developed. It is mainly used for (Φ 1-Φ 10)mm metal wire rod torsion test. Used for testing the ability of the metal wire bearing plastic deformation and displaying wire surface and internal defects in one-way or two-way torsion. It provides reliable measuring method for the production and using unit of wire.

Main Technical Parameters

Coaxial tolerance of the two chuck	＜Φ 0.4
Straightness of removal guide rail within the length scope	＜0.2mm
Maximum distance of two chuck	No less than 550mm
Rotational Speed	30r/min & 60r/min
Hardness of clamp mouth	HRC55-65
Weight tolerance	± 0.01%
Working noise of tester	＜70db
Environment and working conditions:	Temperature: 10-35°
	Placed in a stable basis, the levelness＜0.2%
	Placed in no vibration environment
	No corrosive medium
	Power: 380V 50Hz 2Kw
