Specifications

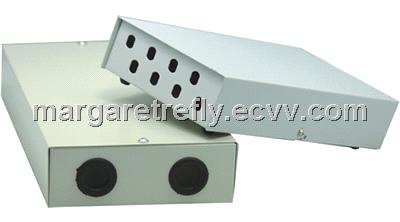

FTTH indoor fiber optic terminal box
It is an ideal solution for cost effective, space critical applications. With plain or optional livery format, it is applicable for wall mounting space application, convenient access LAN requirements, and subscriber access points.
Features
1 metal material, surface sandblasting treatment, the state-of -art technology standards, beautiful appearance.
2 Available for 4, 6, 8, 12,16,24,48 endpoints for realization of fiber cable management.
3 can be installed SC FC ST LC and other types adapter.
4 Fiber to ensure that in any position time, radius of curvature are larger than 40mm.
5 Connector loss (incl. exchange and repetition)=0.5dB
6 Reasonable designing, good protection for pigtail
7 Easy to installation and maintenance
Specifications
|
Panel model
|
FC
|
SC
|
ST
|
LC
|
|
Core numbers
|
2 cores(min),24cores(max)
|
|||
|
Dimension(mm)
|
290x150x41(80)
|
|||
|
Insertion loss(dB)
|
≦0.2dB(general) ≦0.3 dB (max)
|
|||
|
Return loss(dB)
|
APC(SM)≥60,UPC(SM)≥50,PC(SM)≥45,PC(MM) ≥35
|
|||
|
Working temperature(℃)
|
-5℃~+50℃
|
|||
|
Storage temperature(℃)
|
-5℃~+55℃
|
|||
Order information
|
Type
|
Adapter type
|
Number of cores
|
|
FTB
|
0=none
1=SC/APC
2=SC/PC
3=FC/APC
4=FC/PC
5=LC/APC
6=LC/PC
ECT.
|
0=0
4=4
6=6
8=8
12=12
ECT.
|
