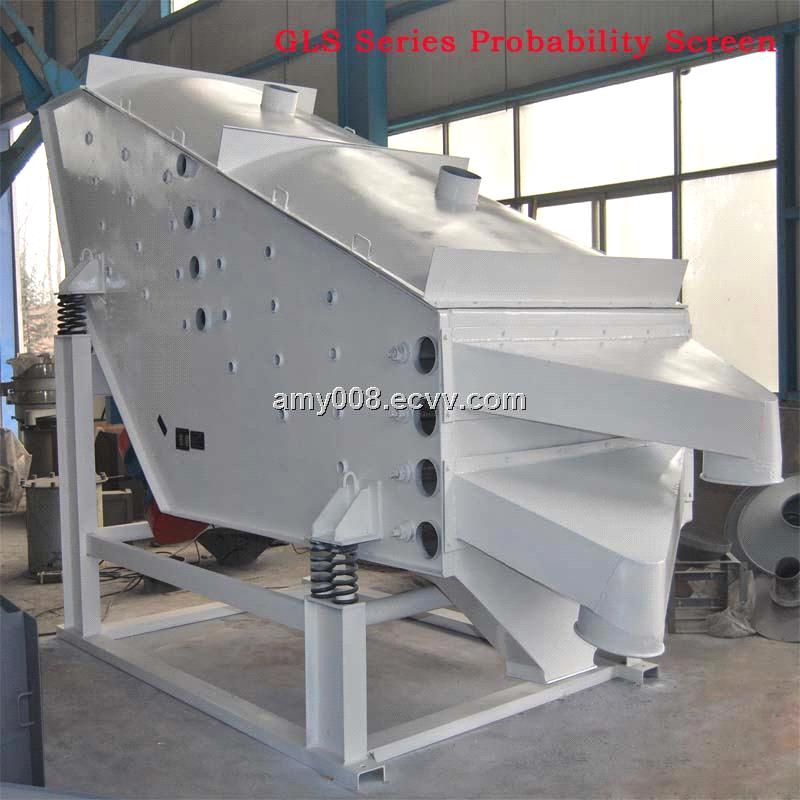

building materials GLS Series Probability Screen

FOB Price:	5,000.00 - 8,000.00 USD/Set
Supply Ability:	10,000 Set/Sets per Year
Shipping:	Tianjin / Shanghai / Qingdao
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Standard Steel Framing Studs and Track

Price:0.10-0.30 USD/Piece

Min. Order:1,000 Pieces
Steel Grating

Price:

Min. Order:
Ductile Iron Drainage Cover

Price:

Min. Order:
Polycarbonate Hardending Sheet Sheet Constructi...

Price:2.00-10.00 USD/Square Meter

Min. Order:2,000 Square Meters

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	wooden case or water-proof package

Specifications

GLS probability screen

[working principle]

GLS probability screen is similar with other linear vibrating screen, after the screen machine starts, the symmetrical two vibration exciter of the same identical specifications and types or the synchronous motor do counter motion; the generating exciting force will deliver to the vibrating screen box through a vibration transmission body, which will make the screen box drive the screen do cyclical exercise, so that the materials on the screen do saltatory exercises along with the screen box, and during that time materials with a size smaller than the screen aperture will be through the screen and materials with a larger size will be discharged from the output, and then finish the final completion of screening.

[structure]

Probability screen which completes the screening operation according to the theory of probability is a fast approximate screening equipment, Viewing from the moving trajectory of the vibrating body, probability sieve is one of linear inertial vibration screen. The basic structure and composition of GLS type probability screen mainly includes: vibration body or sieve box which is composed by power device, vibrating device, bearing base and other related accessories. The whole machine is mainly processing and assembling by welding or welding combination technology.

[Advantage]

Compared with the common linear vibrating screen, the GLS series probability screen has the characteristics of relatively

1. small volume, large capacity, high screening efficiency, long service life of the sieve and convenient replacement.

2. GLS type probability screen can be installed according to the requirements of the users and the screen is generally multilayer metal braid net, which can adopt other screen surface to meet the corresponding requirements according to the special requirements of different users.

[Application]

It is suitable for preparing screening or screening materials that the size requirements are not very strict. It is widely used in the fine screening of coal, building materials, chemical and other industry.
