Fire Motorcycle

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

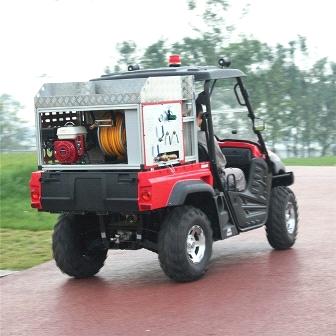

All Terrain 4-wheels Fire Fighting Vehicle

Model	FMUTV500
Overall Dimension(mm)	Length:3010, Width:1460, Height:1940
Total weight without water & foam(kg)	780
Engine	Gasoline, 471cc, water cooled, 4-valve, 4-stroke, 1-cylinder
Max. Power	17kw(22.78hp) / 5000-5500rpm
Driving manner	Front engine, four-wheel drive
Max. speed (km/h)	60
Ground clearance (mm)	245
Emission Standard	Euro IV
Motor for water pump	HONDA
Structure of motor	Four-stroke, 1 cylinder
Rated Power (KW)	4
Starting method	Manual
Rotation speed (r/min)	3600
Model of Water Pump	KAPPA40
Flow rate of Water Pump (l/min)	40
Pressure and lift height	40bar, 400m
Self-suction function (m)	5
Rotation speed (r/min)	550
Model of Hose Reel	JPL-13/19-CX-Y
Length of hose (m)	20/30/40/50 optional
Pressure of hose (bar)	150
Internal and external diameter (mm)	13/19
Model of Water Nozzle	XSWQ-25/3.0-CX-D
Shot range of straight stream (m)	16
Shot range of mist spray (m)	8
Flow rate of water nozzle (l/min)	25
The length of suction hose (m)	8
Interface diameter (mm)	32
Control rate of foam proportioner	0.4~6%
Flow rate (l/min)	adjustable
Foam tank (L)	12
Water Tank (L)	66
