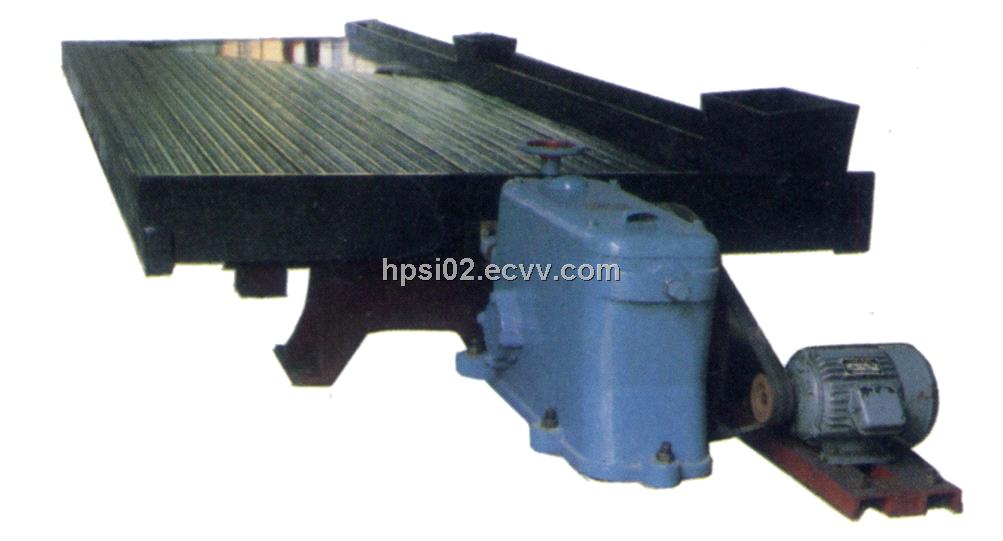

LY Shaking table

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Specifications

It is applicable for separations of fine-grained and micro-grained rare metal, ferrous and non-ferrous metal, precious metal , coal and other minerals. It can carry out ore concentration operation independently and also can operate in conjunction with jig, screw separator, centrifugal separator and other equipment. The product is made by the only manufacturer designated by the former Ministry of Geology and Mineral Resources, in compliance with the Industrial standards.

LY Shaking Table is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features.

The table surface is constructed of ore sand or slime and is made up of glass fibre reinforced plastic or aluminum alloy.

Model	Size	Stroke	Times of stroke	Feed size	Water consumption	Capacity	Power	Weight
Model	mm	mm	1/min	mm	t/min	t/h	kw	t
LY 4518	4500×1850×1560	10-30	240-420	0.074	0.5-1.5	2	1.5	1.35
LY 4518	4500×1850×1560	10-30	240-420	0.074	0.4-0.7	1.8	1.5	1.35
LY 4518	4500×1850×1560	10-30	240-420	0.1	0.5-1.5	1.8	1.1	1.1
LY 3013	3000×1620×1100	6-30	210-320	0.074	0.3-1.5	1.5	1.1	0.7
LY 2110	2100×1050×850	12-28	250-450	0.074	0.3-1	0.3-0.8	0.75	0.5
LY 1150	1100×500×430	9-17	280-460	0.074	0.1-0.5	0.05-0.2	0.55	0.15
