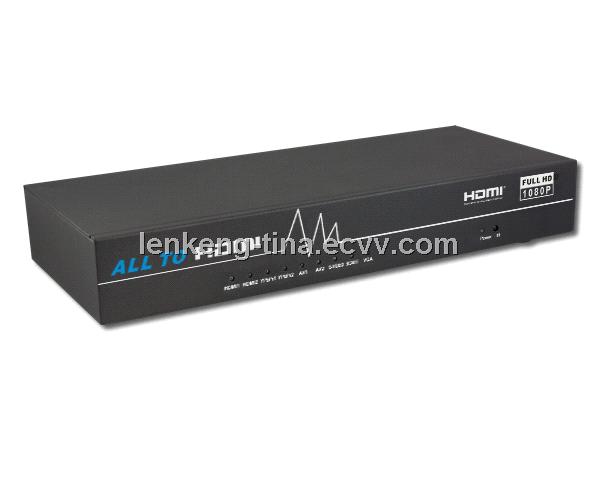

LKV391 All Video to HDMI Scaler & Switch

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Lema Waterproof foot switch

Price:2.00-15.00 USD/Piece

Min. Order:1 Piece
1319nm Q-Switched Laser (FIRDP-1319-Q-100)

Price:

Min. Order:1 Piece
HDMI Bidirectional switch

Price:

Min. Order:
Switch Fitting

Price:

Min. Order:2000 Pieces

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shenzhen in China

Specifications

LKV391 All Video to HDMI Scaler & Switcher is capable of switching between 9 sources, scaling any one of the sources up to HDMI. The output resolution is also selectable between 720P and 1080P. It converts signal from DVD player, Blu-ray Disc player, DVR, game console, STB, PC, etc. to HDMI.

Features

-Input: 2-way Composite Video, 2-way Component Video, 1-way SCART, 1-way S-Video, 1-way VGA, and 2-way HDMI, 2-way Stereo Audio;

-Output: 1-way HDMI, 1-way Stereo Audio;

-Scaling Function: up-scales any of the SD sources to HDMI 720P or 1080P, and also up-scales any of the two HDMI inputs to 720P or 1080P(in case it is with lower resolution);

-Switch Function: Select input source and up-scale it to the single HDMI output and select output HDMI resolution by IR remote control;

-It is with RS232 Control, allowing operation through computer;

-SD Input supports 4:3,16:9 and 16:10 display modes; HD input: supports16:9 and 16:10 display modes.

-Power supply: DC 12V @ 3A;

-Audio: YPbPr1, Video1 and S-Video share the same Audio; YPbPr2 and Video2 share the same Audio, ‘PC AUDIO’ is used independently by VGA input;

-2 HDMI inputs are compatible with DVI input by a HDMI to DVI adapter.

-Max. transmission distance when output 1080P: 5 meters

Inputs: 2-way Composite Video, 2-way Component Video, 1-way SCART, 1-way S-Video, 1-way VGA, and 2-way HDMI, 2-way Stereo Audio;
Output: 1-way HDMI, 1-way Stereo Audio
