Shenzhen Forlight Optoelectronics Co., Ltd.
China Manufacturer with main products: LED Media Facade, LED Video Wall, LED Curtain Display, LED Display, LED Linear Light, LED Pixel Light, LED Wall Washer, LED Flexible Pixel... |
16th
Outdoor Full Colour Advertising Displays
| FOB Price: | 420.00 - 500.00 USD/Square Meter |
|---|---|
| Supply Ability: | 50 Square Meter per Day |
| Shipping: | yantian port, |
| Payment Terms: | T/T, other |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | cartom/wood box |
Specifications
Parameter of LED Media Facade:
|
Part No.
|
CXPX-P52.5-12
|
|
Size
|
L2100MM*W840MM*H173MM
|
|
Shell material:
|
Aluminum alloy base+ PC cover
|
|
Pixel pitch:
|
52.5mm
|
|
LED Pixel composition
|
oval DIP346 4R4G4B/pixel
|
|
Power consumption
|
Maximum power ≤470W
Average power ≤150W |
|
Work voltage:
|
DC15V/DC5V AC220V
|
|
Brightness
|
≥7000cd/㎡
|
|
Viewing angle
|
90 degree horizontal direction.
60 degree vertical direction. |
|
Grayscale
|
3×16BIT
|
|
Ability of color manifestation
|
275 billion
|
|
Light transmittance
|
50%
|
|
Refreshing frequency
|
Static 60 frames/s. (relation with control system and pixel dots. ) |
|
Protection level
|
IP67
|
|
Weight
|
≤22KG
|
|
Working life:
|
50000 hours
|
|
Work temperature
|
-35℃~+85℃
|
|
Work humidity
|
10-90%RH
|
Description:

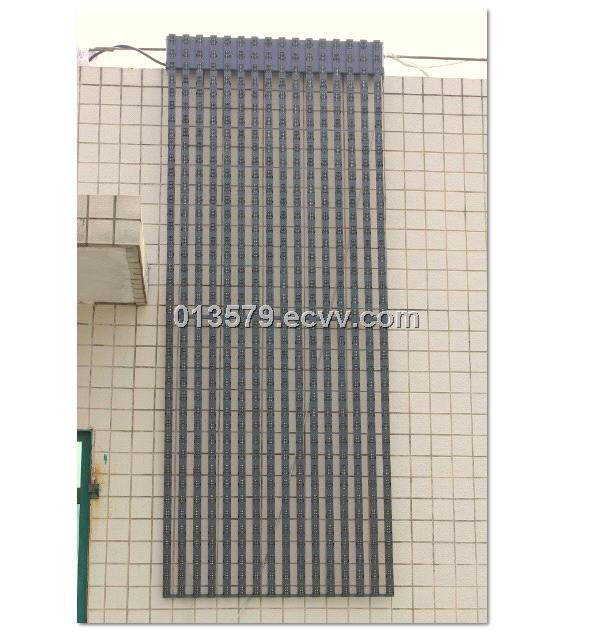

P52.5 LED strip curtain display is a type of smart light fixture which is specially designed for outdoor, large LED curtain wall display screen. It can provide a super high brightness up to 7000CD/㎡, support to view day and night. The shape of display can be customizing according customer request. With PC on-line or off-line control, each pixel creates 68.7 billion splendid colors.
Feature:
Light weight. 12kg/㎡ only.
Long lifespan.
Stable performance
Lower operation cost , lower power consumption. Maximum power ≤270W/㎡ Average power ≤85W/㎡.
Display with a high light transmittance of 50%, Neither won't affect architecture's appearance nor indoor's brightness...
V0 fire protection, IP67 water-proof, Anti-UV, light bar's color won't change as long as 5 years.
Etc.
Application:
LED signboard
Stage LED screen display
Public place LED screen display

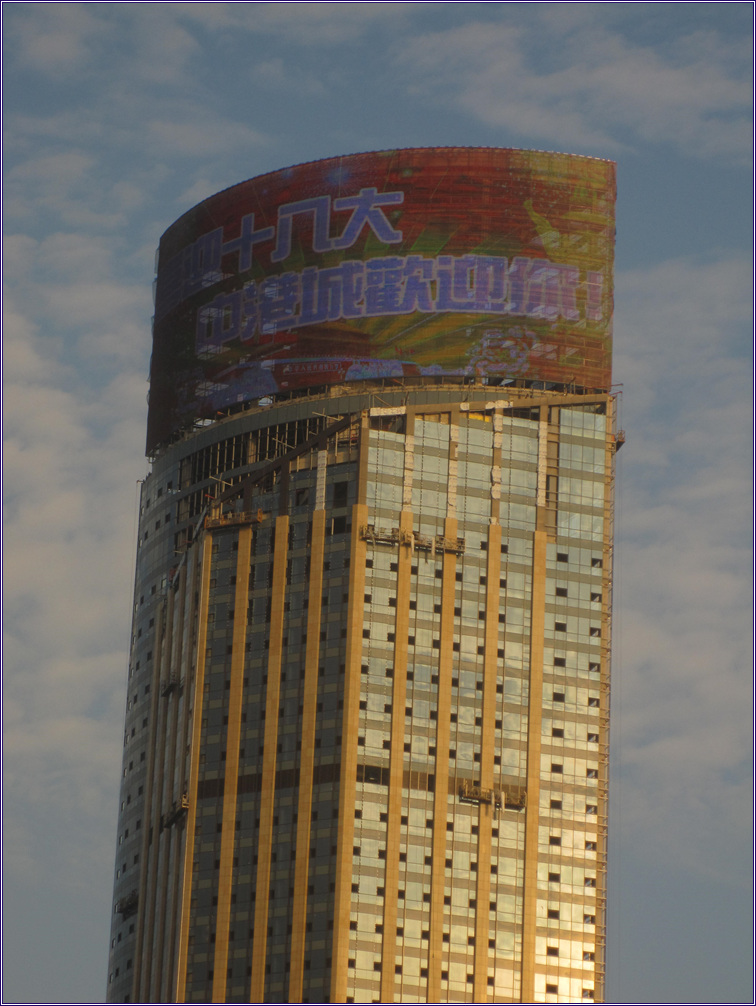

Large LED curtain wall display screen
Our service:
Warranty is 3years. Our engineer team can be responsible for making the scheme including the whole project's light effect, the total quantity of the light fixture and regard accessory. We can provide engineering installation guiding, and training of regard equipment's using. LED light fixture can be customizing according your projects' need.
