Toyota/Lexus Intelligent Denso Tester II with Toyota and Suzuki Card

FOB Price:	480.00 - 550.00 USD/Piece
Supply Ability:	500 Piece/Pieces per Month
Shipping:	within 3 workingdays
Payment Terms:	T/T, Paypal, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	carton pacakge

Specifications

Toyota\Lexus Intelligent Denso Tester II, with Toyota and Suzuki Card.

Function:

1. All type of Toyota (made after 2000) and Lexus included read code, clear code , data flow, action testing and guard against theft initialization function. And it also supports OBD-II.

2. DENSO Diagnostic Tester-2(DST-2) for TOYOTA & LEXUS enables you to diagnose control system for engines, ABS and airbag, even through CAN-diagnosis communication.

3. CAN communication Diagnosis DST-2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.

4. Easy operation on LCE display with touch panel 5.7 inch full color display with touch panel assists an easier operation

5. Voltmeter and Oscilloscope not only communication basis diagnosis (Diagnostic code, ECU data monitor, Active test), but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part.

6. Data recording to your PC saved data such as data-list can be downloaded to your PC.

Feature:

Dimensions: 49CM*39CM*16CM

Source voltage DC 10-32V

Power consumption normail: 7w(12VDC) charging: 10w(12VDC)

Operation temp: 0~45°C

Storage temp: -10~ 60°C

LCD Display 5.7 inch

Touch panel input: by finger or stylus pen

Key four (up, down, two function keys)

Built-in clock for a time stamp

PC communication PC card slot CF x 1ch

USB Host: 1ch function:1 ch

Serial 1ch ( RS-232C)

Vehicle communication CAN, ISO9141

Back up power supply lithium-ion battery 7.4v 1000mAH

Character:

1. Touchscreen & back lighting control

2. Easy & quick

3. User needn’t worry about the after service since factory has an open patio for maintenance.

4. Language: English / Germany / French / Spanish / Italian / Chinese

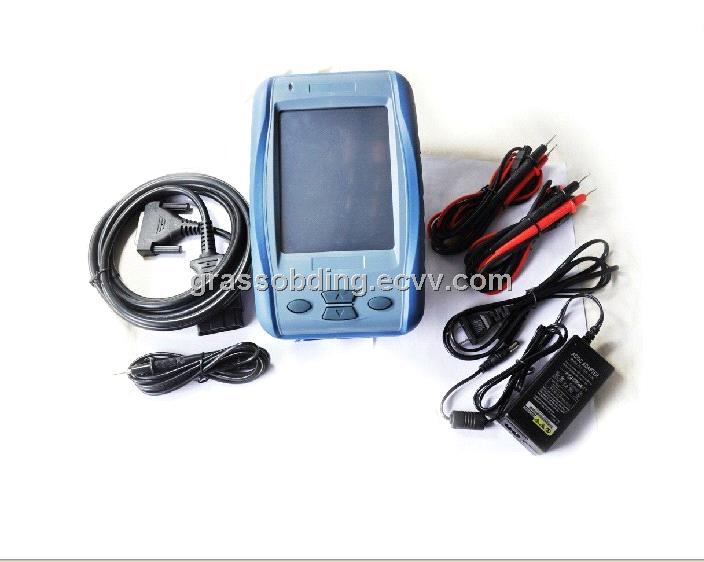

Product Structure:

Package included:

1PCS * Main Unit

1PCS * OBD-II

1PCS * Charging line

1PCS * Lin line

1PCS * Measuring leads for multimeter 1

1PCS * Measuring leads for multimeter 2

Software Included:

1. TOYOTA 201101

2. SUZUKI

After Service:

1. Guarantee: one year, from the date equipment arrival

2. Upgrade method: Email
