Yangzhou Xinyang Machinary Mould Co., Ltd.
China Manufacturer with main products: Tube Mill, Pipe Making Machine, Steel Pipe Mills, Cold Saw |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Specifications

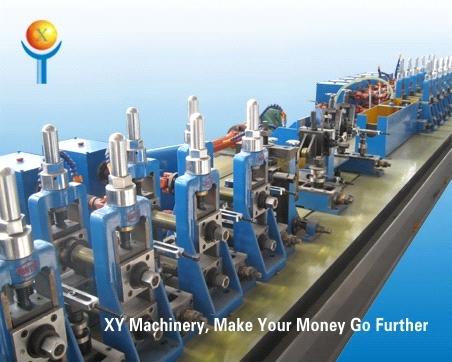

Detailed Product Description(XY32)
Description:Capacity:
1. Pipe ID:13mm-50.8mm
2.Thickness:0.6mm-2.0mm
3.Speed:90m/min
1. Pipe ID:13mm-50.8mm
2.Thickness:0.6mm-2.0mm
3.Speed:90m/min
Double-head uncoiler
Briefing: Rotary type to change coils easily
with a pneumatic brake
Parameters:
(1)The max. weight of coil:1000kg
(2)The inside diameter of coil:300-350mm
(3)The max. outside diameter of coil :1300mm
(4)The max .width of coil: 170mm
Main drive
1.The main motor is driven by model Z4-180-41,55kw DC motor
2.Model ZLY180 speed reducer ,the ratio is 7.1:1
3. Imported OL DC control device to drag
Material collecting cage
1.Material:made of angle and channel iron
2.feeding speed : ≥200m/min
3.Collecting capacity : ≥400m
Width adjustment
Range : 35-160mm
Rolls for collecting material
1. Material: Gcr15
2.Feeding rolls 115mm,2pieces
3.Motor: 3kw ,6Classes,1set
Computer-controlled flying saw
A. Power of automatic controller: 11kw
B. Automatic tracking machine
1.The max .diameter to be cut :Φ55mm
2.The range of cutting length :4m-7m
3.The max. wall thickness to be cut :2.2mm
C. Type : round metal saw blade:Φ350mm×Φ32mm×Φ2.0mm. Power of the saw: 7.5kw
D. Accuracy of the cutting length :within±0.3mm
Discharging table
Conveyed on the rolling way ,reversed pneumatically
High-frequency
1.Model:GP100-0.4-H
2.Input power: 3P,380V,50HZ
3.Output power:100kw
4.Control mode of output power :regulated by microprocessor
5.High voltage rectifier: 20A
6.High voltage transformer:3,380V,180KVA
7.Electronic tube :FU-911S
8.Transformer of the electronic tube shaking :12V-AC
9.Anode hydraulic pipe of electronic tube:Polythene reinforcing tube
10.Capacitor : CCG81-2000P-20KV
Briefing: Rotary type to change coils easily
with a pneumatic brake
Parameters:
(1)The max. weight of coil:1000kg
(2)The inside diameter of coil:300-350mm
(3)The max. outside diameter of coil :1300mm
(4)The max .width of coil: 170mm
Main drive
1.The main motor is driven by model Z4-180-41,55kw DC motor
2.Model ZLY180 speed reducer ,the ratio is 7.1:1
3. Imported OL DC control device to drag
Material collecting cage
1.Material:made of angle and channel iron
2.feeding speed : ≥200m/min
3.Collecting capacity : ≥400m
Width adjustment
Range : 35-160mm
Rolls for collecting material
1. Material: Gcr15
2.Feeding rolls 115mm,2pieces
3.Motor: 3kw ,6Classes,1set
Computer-controlled flying saw
A. Power of automatic controller: 11kw
B. Automatic tracking machine
1.The max .diameter to be cut :Φ55mm
2.The range of cutting length :4m-7m
3.The max. wall thickness to be cut :2.2mm
C. Type : round metal saw blade:Φ350mm×Φ32mm×Φ2.0mm. Power of the saw: 7.5kw
D. Accuracy of the cutting length :within±0.3mm
Discharging table
Conveyed on the rolling way ,reversed pneumatically
High-frequency
1.Model:GP100-0.4-H
2.Input power: 3P,380V,50HZ
3.Output power:100kw
4.Control mode of output power :regulated by microprocessor
5.High voltage rectifier: 20A
6.High voltage transformer:3,380V,180KVA
7.Electronic tube :FU-911S
8.Transformer of the electronic tube shaking :12V-AC
9.Anode hydraulic pipe of electronic tube:Polythene reinforcing tube
10.Capacitor : CCG81-2000P-20KV
